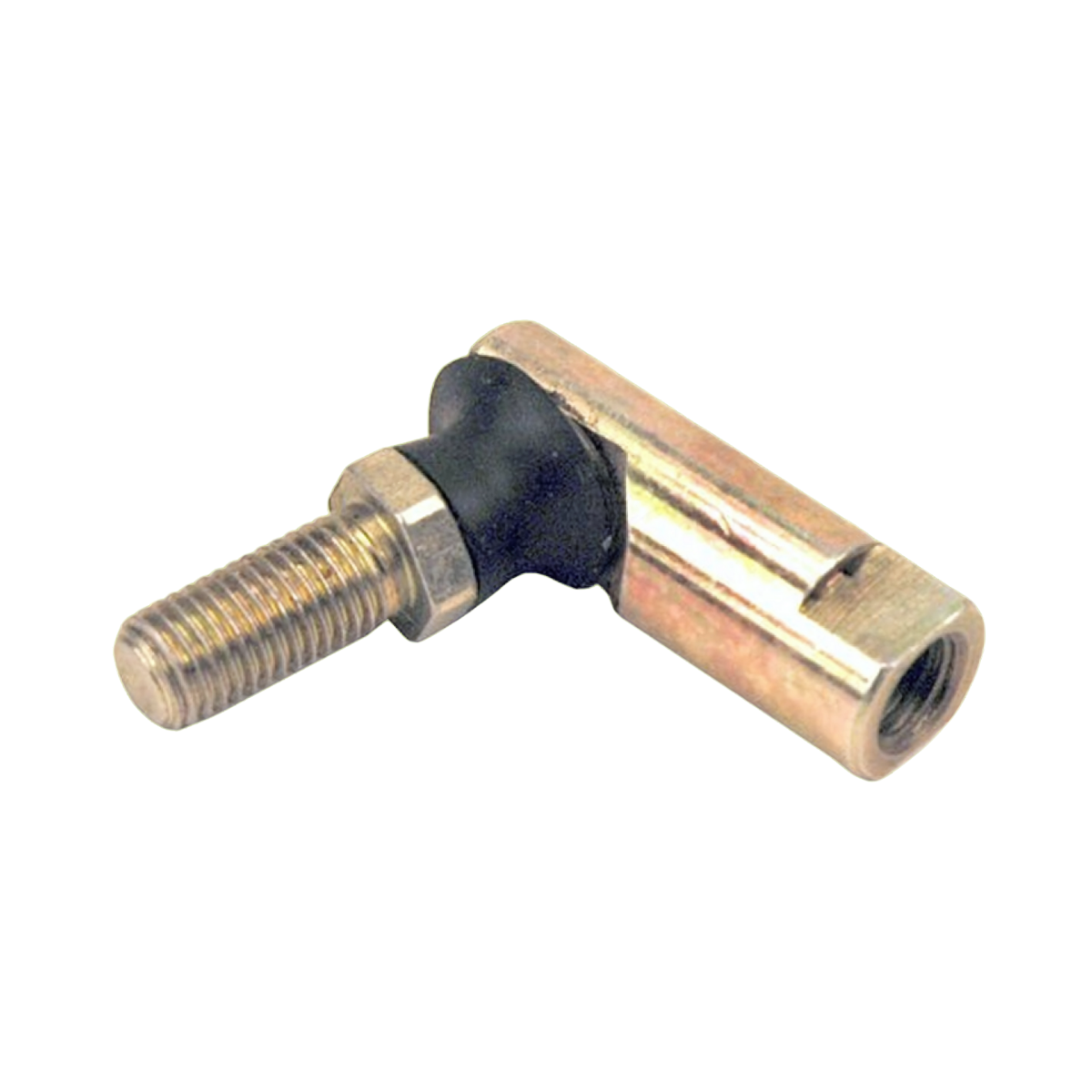

Cub Cadet Ball Joint / Tie Rod End (CHD5101)

MTD BALL JOINT RIGHT HAND THREAD MALE & FEMALE 3/8" X 3/8"

Specifications

Description: Non-Genuine AYP, BOB-CAT, Cub Cadet, Exmark, Husqvarna, Kioti Daedong, Massey Ferguson, MTD, Murray Ball Joint, Male And Female Right Hand Threads, and Both 3/8"-24 UNF

Replaces OEM:

AYP 109850X

BOB-CAT 108078

Cub Cadet 723-0156, 723-3018, 723-3018A, 923-0156, and 923-3018

Exmark 373077

Husqvarna 532 10 98-50

Kioti Daedong 723-0156, 723-3018, 723-3018A, 923-0156, and 923-3018

Massey Ferguson 723-0156, 723-3018, 723-3018A, 923-0156, and 923-3018

MTD 723-0156, 723-3018, 723-3018A, 923-0156, and 923-3018

Murray 21031

Length: (in) 1 11/16"

Length: (mm) 42.862 mm

Thread Size: 3/8"-24 UNF (Both ends)

Fits: AYP selected ride-on lawn mower models.

Fits: BOB-CAT selected models.

Fits: 38” (965 mm) cut Cub Cadet 2135 (model 134214F100 year 1994 and model 13A-214F100 year 1997) ride-on lawn mower models as a steering tie rod end / ball joint.

Fits: Exmark selected models.

Fits: 48” (1220 mm) cut Husqvarna GTH2548XP (model HAU25H48A year 2003 and model HAU25H48B year 2004) ride-on lawn mower models as a tie rod end.

Fits: 42” (1067 mm) cut Kioti Daedong DLT1942 (model 13AO90KG396 years 2009 to 2010, model 13AJ90KS396 years 2010 to 2011) and DLT2042 (model 13AP90KS396 year 2012) ride-on lawn mower models as the transmission idler adjustment, rod end / ball joint.

Fits: 36” (915 mm) cut Massey Ferguson MF36-16ARD (model 13HD90GE395 year 2015) ride-on lawn mower models as the transmission idler adjustment, rod end / ball joint.

Fits: 26” (660 mm) cut MTD 5/26 (model 137-511-670 year 1987) and MTD Yard-Man 5/26 (model 137-511-662 year 1987) as a steering tie rod end / ball joint.

Fits: 27.5” (699 mm) cut MTD Yard-Man YardBug (model 13A-325-643 year 1999) as a steering tie rod end / ball joint.

Fits: 30” (762 mm) cut MTD 11/30 (model 137-506-670 year 1987) as a steering tie rod end / ball joint.

Fits: 38” (965 mm) cut MTD 13.5/38 (model 13A1765F308 year 2016), 420/38 (model 13A2765F308 year 2016 and model 13B2765F306 year 2016) ride-on lawn mower models as the transmission idler adjustment, rod end / ball joint.

Fits: 42” (1067 mm) cut MTD 15.5/42 (model 13AM775S308 year 2016), 17.5/42 (model 13AN775S308 year 2016), 20/42 (model 13AT785S306 years 2014 to 2015 and 2017, model 13BT77KS308 year 2016), MTD Yard-Man (model 13AU604H671 year 1999 and model 13AX604G671 year 2005), YM1642 (model 13AV90YG371 years 2009 to 2010, model 13AV90YS371 years 2010 to 2011), YM2042 (model 13AP90YG371 years 2009 to 2010 and model 13AP90YS371 year 2011), YM2350 (model 13AP90YP371 years 2009 to 2011) ride-on lawn mower models as the transmission idler adjustment, rod end / ball joint.

Fits: 44” (1118 mm) cut MTD Yard Machines (model 137-682-670 year 1987) as a steering tie rod end / ball joint.

Fits: 46” (1168 mm) cut MTD 18/46 (model 139-752-670 year 1989) as a steering tie rod end / ball joint. Also fits MTD 20/46 [2046] (model 13AP785T306 year 2014 and 13AT78KT306 year 2011), 22/46 [2246] (model 13AT785T306 year 2013 and model 13AT77KT308 year 2016) as the transmission idler adjustment, rod end / ball joint.

Fits: 30” (762 mm) cut Murray (models 30500, 30540X20E, 30540X20F, 30540X20G, 30540X20H, 30540X29A, 30540X29B, 30540X29C, 30540X29D, 30540X66F, 30540X67A, 30540X67C, 30540X67D, 30540X67E, 30540X67F, 30540X98A, 30540X98B, 30560X20E, 30560X50A, 30560X50B, 30560X50C, 30560X51A, 30560X51B, 30560X51C, 30560X59A, 30560X66B, 30560X70D, 30570X72A and 31520X72A) ride-on lawn mower models as a steering tie rod end / ball joint.

Fits: 40” (1016 mm) cut Murray (models 40530X51A, 40530X51B, 40530X51C, 40531X50A and 40531X59A) ride-on lawn mower models as the transmission shift rod ball joint / rod end.

Fits: 42” (1067 mm) cut Murray (models 42532X50A, 42545X29A and 42545X29B) ride-on lawn mower models as the transmission shift rod ball joint / rod end.

Standard Pack Quantity: 1

Brand: AYP - Non Genuine, BOB-CAT - Non Genuine, Cub Cadet - Non Genuine, Exmark - Non Genuine, Husqvarna - Non Genuine, Kioti Daedong - Non Genuine, Massey Ferguson - Non Genuine, MTD - Non Genuine, and Murray - Non Genuine

Product Line: Ball Joint, Tie Rod and Rod End
