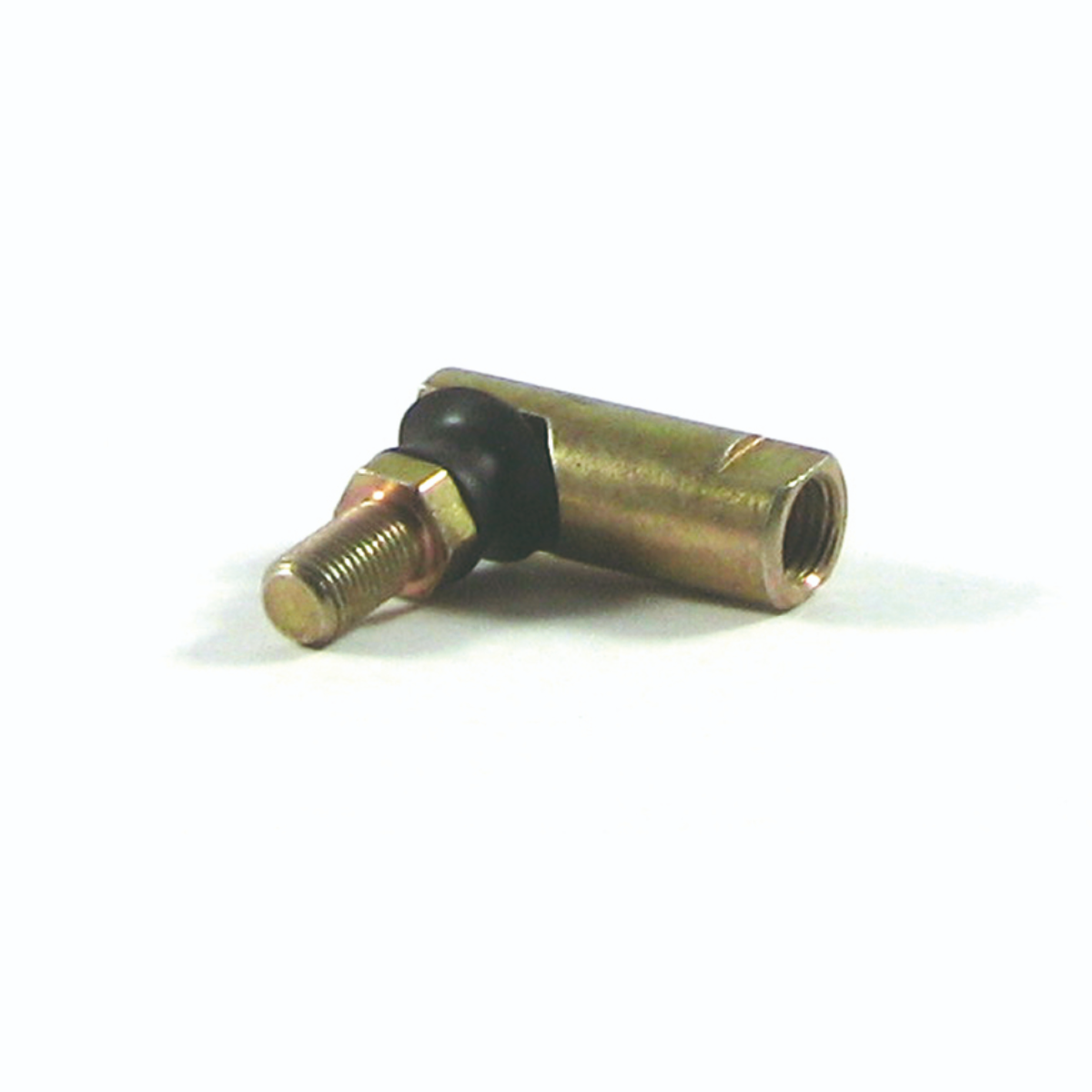

Cub Cadet Ball Joint / Tie Rod End (CHD5775)

MTD BALL JOINT RIGHT HAND THREADS

Specifications

Description: Non-Genuine Cub Cadet, Kioti Daedong, Massey Ferguson, Masport, MTD, Rover, Scott Bonnar, Troy Bilt, White Outdoor Ball Joint, Right Hand Threads 3/8"-24 UNF Male x 7/16"-20 UNF Female

Replaces OEM:

Cub Cadet 723-0448, 723-0448A, 723-0448AP, 923-0448A, and 923-0448AP

Kioti Daedong 723-0448, 723-0448A, 723-0448AP, 923-0448A, and 923-0448AP

Massey Ferguson 723-0448, 723-0448A, 723-0448AP, 923-0448A, and 923-0448AP

Masport 723-0448, 723-0448A, 723-0448AP, 923-0448A, and 923-0448AP

MTD 723-0448, 723-0448A, 723-0448AP, 923-0448A, and 923-0448AP

Rover 723-0448, 723-0448A, 723-0448AP, 923-0448A, and 923-0448AP

Scott Bonnar 723-0448, 723-0448A, 723-0448AP, 923-0448A, and 923-0448AP

Troy Bilt 723-0448, 723-0448A, 723-0448AP, 923-0448A, and 923-0448AP

White Outdoor 723-0448, 723-0448A, 723-0448AP, 923-0448A, and 923-0448AP

Length: (in) 1 11/16" (Ball joint length)

Length: (mm) 42.862 mm (Ball joint length)

Thread Size: 3/8" -24 UNF Male x 7/16"-20 UNF Female x 5/8" Long

Fits: 42” (1067 mm) cut Cub Cadet LT1042 (model 13AX11CG630 years 2006 and 2008 onwards), LTX1042 (model 13AP91AS330 years 2012 to 2013, model 13AP93AS330 year 2014, model 13AX91AG330 year 2010, model 13AX91AS330 years 2010 and 2012 and model 13BP91AS330 year 2013), LTX1042KW (model 13AG93AS330 year 2014) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 44” (1118 mm) cut Cub Cadet GT2544 (model 14A-2D7L330 with K015 - K018 manufacturing date) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 46” (1168 mm) cut Cub Cadet LT1046 (model 13AP11CH010 year 2008 and onwards and model 13AP11CH710 year 2007 and earlier) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 50” (1270 mm) cut Cub Cadet GT2550 (model 14A-2E7P330 year 2009 and onwards and model 14A-2E7P395 year 2009 and onwards), LTX1050 (model 13AP91AP330 years 2011 to 2013, model 13AQ93AP330 year 2014 and model 13BQ93AP330 year 2014), LTX1050KW (model 13AI93AP330 year 2014) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 54” (1372 mm) cut Cub Cadet GT1554 (model 14AQ94AK330 year 2011), GTX1054 (model 14AZ94AK330 years 2012 to 2013 and model 14BZ94AK330 year 2014), SLT1554 (model 13AK11BK010 years 2007 and earlier and 2008 onwards), SLT1554 [Super LT1554] (model 13AK11CK630 year 2006), SLTX1054 (model 13AQ92AK330 year 2009) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 38” (965 mm) cut Kioti Daedong DLT1538 (model 13AM76KF396 years 2009 and 2011 and model 13AV76KF396 year 2012) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 42” (1067 mm) cut Kioti Daedong DLT1942 (model 13AO90KG396 years 2009 to 2010 and model 13AJ90KS396 years 2010 to 2011), DLT2042 (model 13AP90KS396 year 2012) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 50” (1270 mm) cut Kioti Daedong DLT2350 (model 13AR92KP396 years 2009 to 2011) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 36” (915 mm) cut Massey Ferguson MF36-15RD (model 13CV51CE695 year 2010), MF36-16ARD (model 13HD90GE395 year 2005) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 38” (965 mm) cut Massey Ferguson MF38-15SD (model 13AV91CF395 years 2010 to 2011) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 41” (1042 mm) cut Massey Ferguson MF41-22RD (model 13CF51CN695 year 2011, model 13HP91GN395 year 2015), MF41-24RD (model 13CI51CN695 year 2010) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 42” (1067 mm) cut Massey Fergusson MF42-20SD (model 13AP91CS395 years 2010 to 2012 and 2014, model 13AP93GS395 year 2014, model 13BP91CS395 years 2012 to 2013) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 50” (1270 mm) cut Massey Fergusson MF50-25SD (model 13AQ92CP395 year 2009, model 13AW92CP395 year 2009 and model 14AQ94CP395 year 2011) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 54” (1372 mm) cut Massey Ferguson MF54-25SD (model 14AQ94CK395 years 2012 to 2013) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 38” (965 mm) cut Masport A3800 (model 552854 year 2014) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 42” (1067 mm) cut Masport A4200 (model 552925 year 2017) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 30” (762 mm) cut MTD Yard machines (model 13AL450C670 year 1997) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 38” (965 mm) cut MTD 13.5/38 (model 13A1765F308 years 2014 to 2016 and 2018), 13538 (model 13AC762F306 year 2009, model 13AC762F308 years 2009 and 2011), 14.5/38 (model 13AM765F306 year 2013), 145/38 (model 13AM765F306 year 2012), 14538 (model 13AM762F306 year 2011), 420/38 (model 13A2765F306 years 2012 to 2013, model 13A2765F308 years 2012 to 2016 and 2018, model 13B2765F306 years 2014 to 2017), 42038 (model 13A2761F306 year 2011), MTD (model 13WC762F065 year 2011), Yard Machines YM 13.5/38 (model 13A1762F329 years 2014 to 2015), Yard Machines YM 420/38 (model 13A2762F329 years 2014 and 2016), Yard Machines 638 RL (model 13AC762F308 year 2010), Yard Machines (models 13A1762F029 years 2008 to 2009, model 13A1762F329 year 2013, model 13A1762F370 year 2006, model 13A1762F670 years 2005 to 2006, model 13A2761F360 year 2014, model 13A3662F670 year 2002, model 13AA660F670 year 2002, model 13AC762F329 year 2009 and 2011, model 13AC762F370 year 2008, model 13AC762F670 years 2007 to 2008, model 13AH450F670 year 1997 to 1998, model 13AH451F670 year 1998, model 13AH660F670 years 2000 to 2001, model 13AM475F670 year 1998, model 13AM678F670 year 2002, model 13AM771F670 year 2005, model 13AN771F670 year 2007, model 13B1662F670 year 2003 to 2004, model 13BM688F670 year 2003 to 2004), Yard-Man (model 13AM604F671 year 2004, model 13AM693F671 year 2001, model 13AM694F671 year 1999) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 42” (1067 mm) cut MTD 15.5/42 (model 13AM775S308 years 2013 to 2016), 17/42 (model 13AV765S306 years 2014 to 2015), 17.5/42 (model 13AN775S308 years 2012 to 2016 and 2018), 175/42 (model 13AN775S306 year 2012), 17542 (model 13AN772G306 year 2009, model 13AN772G308 year 2009, model 13AN775S306 year 2011 and model 13AN775S308 year 2011), 18/42 (model 13AT91KS306 year 2012), 20/42 (model 13AT775S308 year 2013, model 13AT77KS308 year 2013, model 13AT785S306 years 2014 to 2018 and model 13BT77KS308 years 2014 to 2016), 2042 (model 13AN775G308 year 2009, model 13AT77KG308 year 2009, model 13AT775G308 year 2009), 22/42 (model 13AP91KS308 year 2013), Gold (model 13AX795S004 year 2017), Ranch King (model 13AO619G206 year 1997), Yard Machines (model 13AD791G670 year 2005, model 13AF698G602 year 2003, model 13AI678G670 year 2002, model 13AM772S329 year 2013, model 13AN772G370 years 2008 to 2009, model 13AO771G670 year 2006, model 13A7771G670 year 2005, model 13AN772G329 year 2009, model 13AN772S329 years 2010 to 2011, model 13AN795G370 year 2008, model 13AS678G670 year 2001, model 13AQ688G670 years 2003 to 2004, model 13AT77KS329 year 2011), Yard Machines 742RL (model 13AN772G329 year 2009), Yard-Man YM1642 (model 13AV90YG371 years 2009 to 2010, model 13AV90YS371 years 2010 to 2011), YM2042 (model 13AP90YG371 years 2009 to 2010, model 13AP90YS371 years 2010 to 2011), Yard-Man (model 13AK694G671 year 1998, model 13AP604G671 years 2006 to 2007, model 13AT604G671 year 2004, model 13AU604G671 year 2004, model 13AV604G371 year 2009, model 13AV604G671 year 2006, model 13AX604G671 years 2001 and 2005, model 13AX615G055 year 2008, model 13AX694G401 years 1997 to 1998, model 13BT604G401 years 2003 to 2004 and model 13BT604G452 year 2003) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 46” (1168 mm) cut MTD Brute (model 13AL605H057 year 2009), 20/46 (model 13AP785T306 year 2014, model 13AT77KT308 year 2012), 2046 (model 13AT77KT306 year 2011, model 13AT77KT308 year 2011, model 13AT78KT306 year 2011), 22/46 (model 13AT775T305 year 2015, model 13AT785T306 year 2013, model 13AT77KT308 years 2014 to 2016 and 2018), MTD (model 13AT785T306 year 2012), Yard-man (model 13AO771H055 year 2009, model 13AP604H671 year 2007, model 13AP605H755 year 2006, model 13AR604H671 year 2005, model 13AU604H671 years 1999 to 2001 and 2004, model 13AU614H755 year 2005) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 50” (1270 mm) cut MTD Yard-Man YM2350 (model 13AP90YP371 years 2009 to 2011) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 38” (965 mm) cut Rover Raider 1438 [14/38] (model 13AM76TF333 years 2010 to 2012 and 2014 and model 13AM76WF333 year 2014), Raider 1538 (model 13AM91WF333 years 2012 to 2013 and model 13AV93WF333 year 2014), Raider 420/38 (model 13A276WF333 years 2017 to 2018), Rancher 547/38 (model 13A879WF333 years 2016 to 2017), Ranger 42038 [420/38] (model 13A2761F333 years 2011 to 2012), 420/38 (model 13A276WF333 years 2015 to 2016) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 42” (1067 mm) cut Rover Raider 1742 [17/42] (model 13AN91WS333 years 2012 to 2014 and model 13AV76WS333 year 2016), Raider 1842 [18/42] (model 13AO77TS333 years 2010 to 2012), Raider 2042 (model 13AP93WS333 year 2014 and model 13BP93WS333 year 2014), Rancher 1742 (model 13AV90KS333 years 2010 to 2012), Rancher 2042 [20/42] (model 13AP91KS333 years 2010 to 2012), Rancher 2242 (model 13AP91WS333 year 2012 to 2013), Rancher 547/42 (model 13AX79WS333 year 2016, model 13A879WS333 year 2016 and model 13A879WS333 years 2017 to 2018) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 46” (1168 mm) cut Rover Raider 1946 (model 13AO91WT333 year 2012 to 2013), Rancher 2246 (model 13AP93WT333 year 2014) and Rover (model 13A879WT333 year 2015) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 38” (965 mm) cut Scott Bonnar 420/38 (model 13A2761F373 year 2015) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 38” (965 mm) cut Troy Bilt Pony (model 13A177KF309 year 2015), TB3813 (model 13AC76KF309 year 2011) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 42” (1067 mm) cut Troy Bilt LT-1742 (model 13CD609G063 year 2002), Pony (model 13AN779G766 year 2005, model 13AN77KS309 years 2012 to 2016 and model 13WN77KS011 year 2011), TB4216 (model 13AV90KS309 year 2011), TB4220 (model 13AP90KS309 years 2011 to 2012 and 2014) Troy Bilt (model 13BX609G063 year 2000 and model 13CD609G063 year 2001) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 46” (1168 mm) cut Troy Bilt Horse XP (model 13WX79KT011 year 2011, model 13AX79KT309 years 2011 to 2012 and 2016), Super Bronco (model 13AX60KH066 year 2009), TB46 (model 13AL78KT309 year 2015), TB547/46 (model 13A877KT309 year 2018) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 50” (1270 mm) cut Troy Bilt (model 13AP60TP766 year 2006) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 38” (965 mm) cut White Outdoor LT-125 (model 13AC76GF390 years 2010 to 2011) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 42” (1067 mm) cut White Outdoor LT-175 (model 13AN77GS390 year 2011), Mustang (model 13AN77GG390 year 2009) ride-on lawn mower models as a drag link rod end / ball joint.

Fits: 46” (1168 mm) cut White Outdoor LT-546G (model 13AN775H790 years 2007 to 2008) and LT-946G (model 13AP606H790 year 2006) ride-on lawn mower models as a drag link rod end / ball joint.

Features:

• Male end: 3/8"-24 UNF right hand thread.

• Female end: 7/16"-20 UNF right hand thread.

• Thread Length: 5/8" (15.875 mm)

Standard Pack Quantity: 1

Brand: Cub Cadet - Non Genuine, Kioti Daedong - Non Genuine, Massey Ferguson - Non Genuine, Masport - Non Genuine, MTD - Non Genuine, Rover - Non Genuine, and Scott

Bonnar - Non Genuine, Troy Bilt - Non Genuine, and White Outdoor - Non Genuine

Product Line: Ball Joint, Drag Link End, Tie Rod, and Rod End
