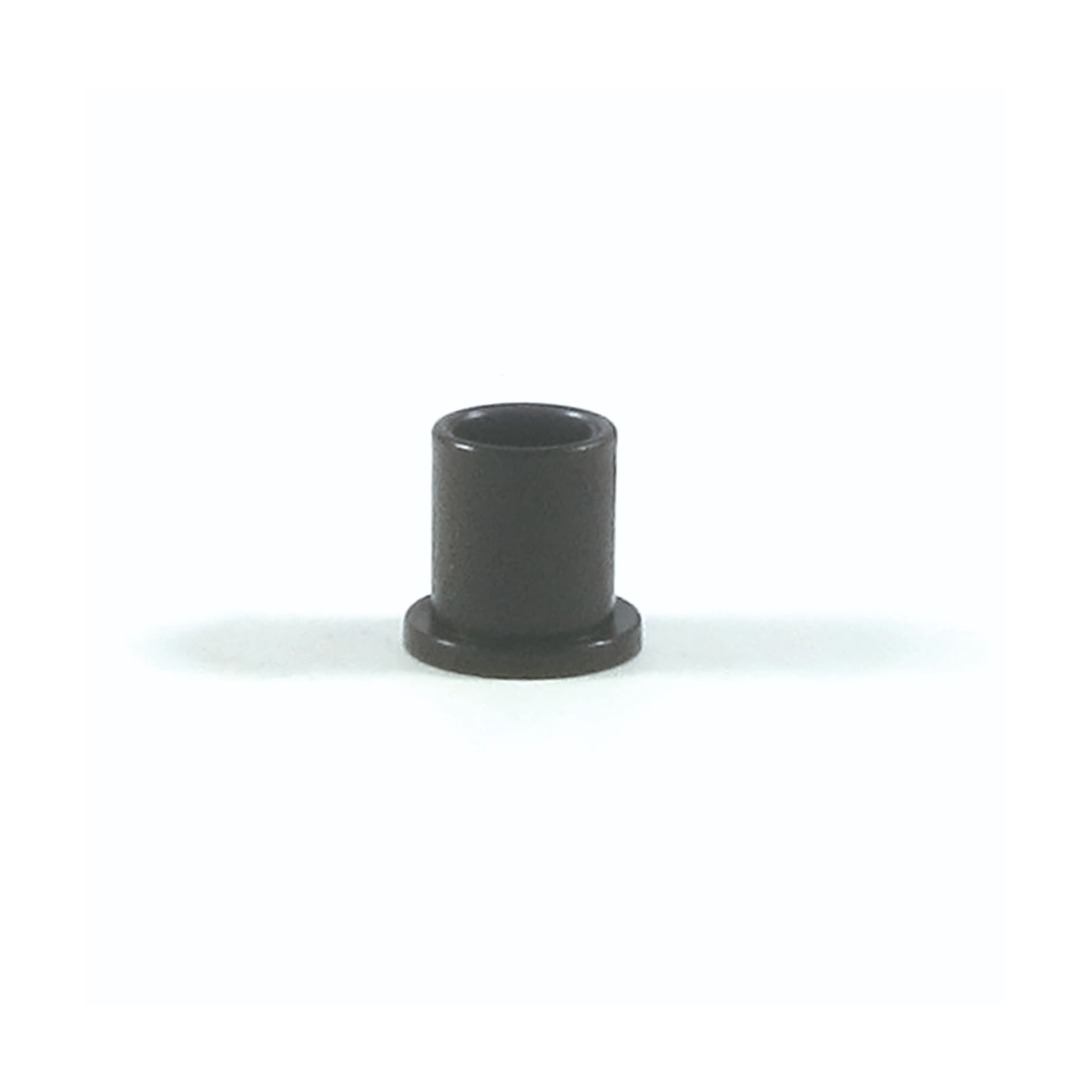

Cub Cadet Chassis, Wheel And Steering Arm Nylon Bushing (CHD5718)

MTD NYLON WHEEL BUSH 1" HT X 5/8" ID X 13/16" OD

Specifications

Description: Non-Genuine Cub Cadet, MTD, White Chassis, and Wheel And Steering Arm Nylon Bushing

Replaces OEM:

Cub Cadet 741-0487, 741-0487A, 741-0487AP, 741-0487C, and 941-0487A

MTD 741-0487, 741-0487A, 741-0487AP, 741-0487C, and 941-0487A

White 741-0487, 741-0487A, 741-0487AP, 741-0487C, and 941-0487A

Height: (inches) 1"

Height: (mm) 25.4 mm

Inside Diameter: (inches) 5/8"

Inside Diameter: (mm) 15.875 mm

Outside Diameter: (inches) 13/16"

Outside Diameter: (mm) 20.637 mm

Fits: 54” (1372 mm) cut Cub Cadet Pro Z 100 EFI, 154-S (model 53AWEFJA330 year 2018) zero turn radius (ZTR) ride-on models as the deck wheel bushes.

Fits: 26” (660 mm) cut MTD 5/26 (model 137-511-670 year 1987) and MTD Yard-Man 5/26 (model 137-511-662 year 1987) ride-on lawn mower models as a front wheel bushing / bearing.

Fits: 30” (770 mm) cut MTD 11/30 (model 137-506-670 year 1987), and MTD Yard Machines (model 13AL450C670 year 1997) ride-on lawn mower models as a front wheel bushing / bearing.

Fits: 32” (813 mm) cut MTD 11/32 (model 138-342-670 year 1988 and model 139-332-670 year 1989) ride-on lawn mower models as a front wheel bushing / bearing.

Fits: 38” (965 mm) cut MTD Yard Machines (model 13AA660F670 year 2002, model 13AM678F670 year 2002, model 13B1662F670 years 2003 to 2004 and model 13BM688F670 years 2003 to 2004) and MTD Yard-Man (model 13AM693F671 year 2001 and model 13AM694F671 year 1999) ride-on lawn mower models as a deck lift bushing.

Fits: 38” (965 mm) cut MTD 11/38 (model 139-632-670 year 1989), 12/38 (model 131-650F670 year 1991, model 132-660F670 year 1992 and model 138-652-670 year 1988), MTD Yard Machines (model 139-652-670 year 1989, model 13A3662F670 year 2002, model 13AH450F670 year 1998, model 13AH451F670 year 1998, model 13AH660F670 year 2001 and model 13AM475F670 year 1998) and MTD Yard-Man (model 138-655-662 year 1988 and model 139-655-662 year 1989) ride-on lawn mower models as a front wheel bushing / bearing.

Fits: 38” (965 mm) cut MTD (model 132-660F670 year 1992) and MTD Yard Machines (12/38 model 133K600F670 year 1993, 12.5/38 model 133I600F670 year 1993, model 13B1662F670 years 2003 to 2004 and model 13BM688F670 years 2003 to 2004) as the steering arm bushings.

Fits: 42” cut MTD Yard Machines (model 13AI678G670 year 2002, model 13AS678G670 year 2001 and model 13AQ688G670 years 2003 to 2004) and MTD Yard-Man (model 13AK694G671 year 1998) as a deck lift bushing.

Fits: 42” (1067 mm) cut MTD Yard Machines (model 13AF698G602 year 2003 and model 13AQ688G670 years 2003 to 2004) ride-on lawn mower models as the steering arm bushings.

Fits: 42” (1067 mm) cut MTD Yard-Man (model 13AX694G401 year 1998, model 13BT604G401 year 2003 and model 13BT604G452 year 2003) ride-on lawn mower models as a front wheel bushing / bearing.

Fits: 44” (1118 mm) cut MTD Yard Machines (model 137-682-670 year 1987) ride-on lawn mower models as a front wheel bushing / bearing.

Fits: 32” (813 mm) cut White (model 131-332D672 year 1991 and L-11 models 138-346-672 and 139-347-672 years 1988 to 1989) ride-on lawn mower models as a front wheel bushing / bearing.

Fits: 38” (965 mm) cut White LT-12 (model 139-656-672 year 1989), LT-120 (model 138-666-672 year 1988) ride-on lawn mower models as a front wheel bushing / bearing.

Features: This Nylon bushing is fitted to selected Cub Cadet, MTD and White ride-on lawn mowers and ZTR’s and used in multiple fitment applications, including as a deck lift arm bushing, deck wheel bushing, front wheel bushing / bearing and a steering arm bushing.

• Deck lift arm bushing

• Deck wheel bushing

• Front wheel bushing

• Steering arm bushing

Standard Pack Quantity: 1

Brand: Cub Cadet - Non Genuine, MTD - Non Genuine and White - Non Genuine

Product Line: Bush - nylon, bushing - nylon, deck arm bushing, deck wheel bush, front wheel bush nylon bush, nylon bushing, steering arm bush, and wheel bushing
