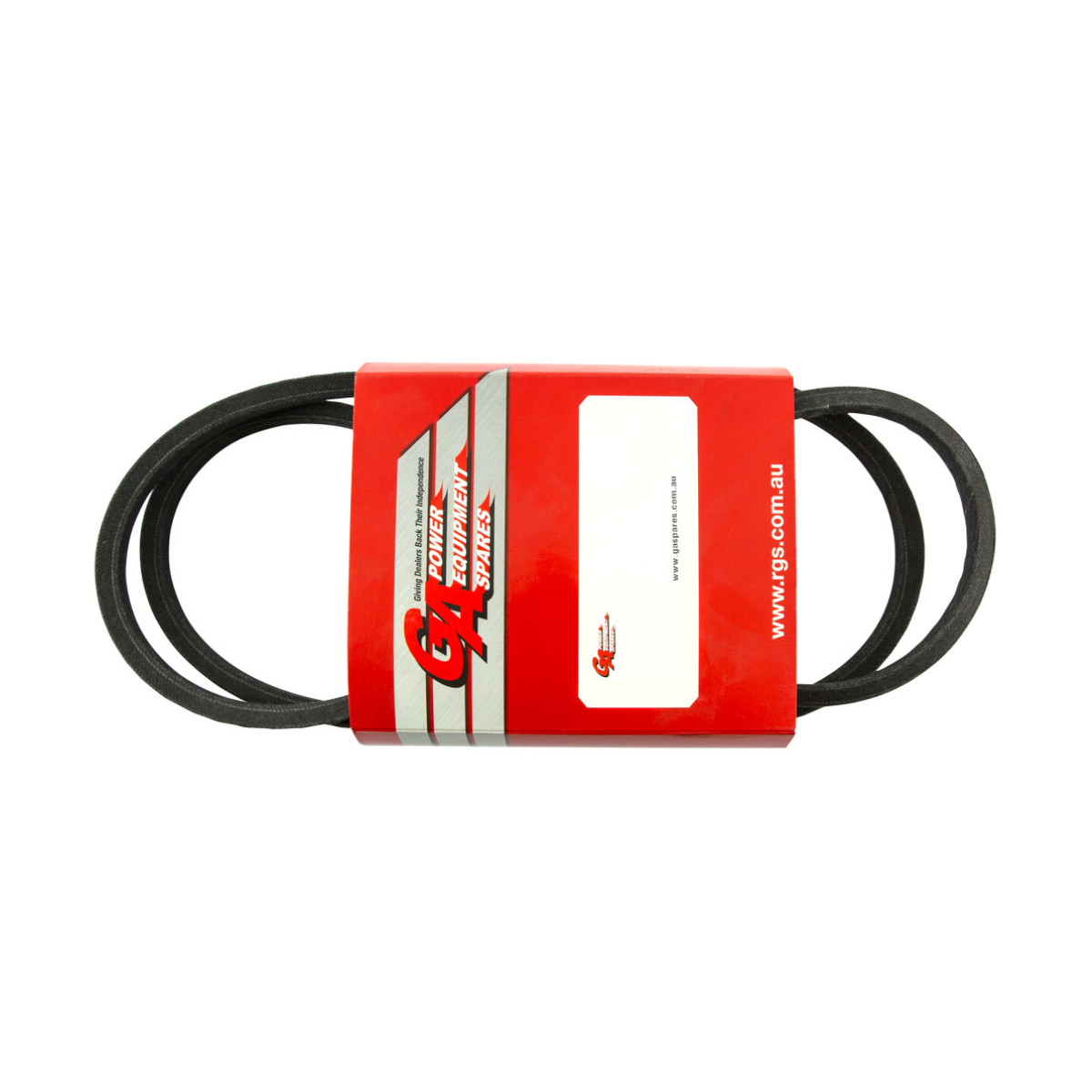

Cub Cadet Cutter Deck Belt (BEL954-04062)

CUB CADET & MTD BELT CUTTER DECK

Specifications

Description: Non-Genuine Cub Cadet, Kioti Daedong, Masport, Massey Ferguson, Morrison, MTD, Rover, Troy Bilt, and White Outdoor Cutter Deck Belt

Replaces OEM:

Cub Cadet 754-04062, 754-04062A and 954-04062

Kioti Daedong 754-04062, 754-04062A and 954-04062

Masport 754-04062, 754-04062A and 954-04062

Massey Ferguson 754-04062, 754-04062A and 954-04062

Morrison 754-04062, 754-04062A and 954-04062

MTD 754-04062, 754-04062A and 954-04062

Rover 754-04062, 754-04062A and 954-04062

Troy Bilt 754-04062, 754-04062A and 954-04062

White Outdoor 754-04062, 754-04062A and 954-04062

Deck (inches) 38" cut

Deck (mm) 965 mm cut

Deck (cm) 96.5 cm cut

Length Inside Circumference: 75 3/4"

Length Inside Circumference: 1924.05 mm

Length Outside Circumference: 77 3/4"

Length Outside Circumference: 1974.85 mm

Width: (inches) 1/2"

Width: (mm) 12.7 mm

Fits: 38" (965 mm) cut Cub Cadet selected 2005 to 2006 ride-on lawn mower models as the cutter deck belt.

Belt Position & Size: Cub Cadet Cutter Deck Belt ( 1/2" Wide x 75 3/4" I.C / 77 3/4" O.C)

Fits: 38" (965 mm) cut Kioti Daedong DLT1538 (model 13AM76KF396 years 2009, 2011 and model 13AV76KF396 year 2012) ride-on lawn mower models as the cutter deck belt.

Belt Position & Size: Kioti Daedong Cutter Deck Belt ( 1/2" Wide x 75 3/4" I.C / 77 3/4" O.C)

Product Line Notes: For the Kioti Daedong models listed above use with our BEL754-0241 (upper) and

BEL954-04001 (lower) transmission drive belts.

Fits: 38" (965 mm) cut Masport A3800 (17.5/38SD model 552854 years 2014 to 2016), G3800 (420cc/38SD model 552930 years 2016 to 2017 and 15.5/38SD model 552986 years 2018 to 2020) ride-on lawn mower models as the cutter deck belt.

Belt Position & Size: Masport Cutter Deck Belt ( 1/2" Wide x 75 3/4" I.C / 77 3/4" O.C)

Fits: 38" (965 mm) cut Massey Ferguson MF 38-15 SD ride-on lawn mower models as the cutter deck belt.

Belt Position & Size: Massey Ferguson Cutter Deck Belt ( 1/2" Wide x 75 3/4" I.C / 77 3/4" O.C)

Fits: 38" (965 mm) cut Morrison G380 (420cc/38SD model 552852 year 2014) ride-on lawn mower models as the cutter deck belt.

Belt Position & Size: Morrison Cutter Deck Belt ( 1/2" Wide x 75 3/4" I.C / 77 3/4" O.C)

Fits: 38" (965 mm) cut MTD 13.5/38 (model 13A1765F308 years 2014 to 2015), 13538 (model 13AC762F306 year 2009 and model 13AC762F308 years 2009 and 2011), 14.5/38 (model 13AM765F306 year 2013), 145/38 (model 13AM765F306 year 2012), 14538 (model 13AM762F306 year 2011), 420/38 (model 13A2765F306 years 2012 to 2013, model 13A2765F308 years 2012 to 2015, model 13B2765F306 years 2014 to 2015), 42038 (model 13A2761F306 year 2011), MTD (model 13AC762F308 year 2010 and model 13WC762F065 year 2011), MTD Yard Machines (model 13A1762F029 years 2008 to 2009, model 13A1762F370 year 2006, model 13A1762F670 year 2006, model 13A2761F360 year 2014, model 13AC762F329 year 2011, model 13AC762F370 year 2008, model 13AC762F670 year 2007, model 13AM771F670 year 2005, model 13AN771F670 year 2007), MTD Yard Machines YM 13.5/38 (model 13A1762F329 years 2013 to 2015), YM 420/38 (model 13A2762F329 year 2014) ride-on lawn mower models as the cutter deck belt.

Belt Position & Size: MTD Cutter Deck Belt ( 1/2" Wide x 75 3/4" I.C / 77 3/4" O.C)

Fits: 38" (965 mm) cut Rover Raider 1438 [14/38] (model 13AM76TF333 years 2010 to 2012 and 2014 and model 13AM76WF333 year 2014), Rover Rancher 547/38 (models 13A878WF333 year 2020 and 13A879WF333 years 2016 to 2019),Rover Ranger 42038 [420/38] (model 13A2761F333 years 2011 to 2012), Rover 420/38 (model 13A276WF333 years 2015 to 2018), Rover Scott Bonnar 420/38 (model 13A2761F373 year 2015), Raider 439/38 (model 13AB76WF333 years 2019 to 2020) ride-on lawn mower models as the cutter deck belt.

Belt Position & Size: Rover Cutter Deck Belt ( 1/2" Wide x 75 3/4" I.C / 77 3/4" O.C)

Fits: 38" (965 mm) cut Troy Bilt Pony (model 13A177KF309 year 2015) and TB3813 (model 13AC76KF309 year 2011) ride-on lawn mower models as the cutter deck belt.

Belt Position & Size: Troy Bilt Cutter Deck Belt ( 1/2" Wide x 75 3/4" I.C / 77 3/4" O.C)

Fits: 38" (965 mm) cut White Outdoor LT-125 (model 13AC76GF390 year 2010) ride-on lawn mower models as the cutter deck belt.

Belt Position & Size: White Outdoor Cutter Deck Belt ( 1/2" Wide x 75 3/4" I.C / 77 3/4" O.C)

Standard Pack Quantity: 1

Footnote: Our premium quality belts are manufactured with high-strength Aramid fibre cords for heavy duty applications and severe duty cycles. These belts have a drier cover fabric that is designed to increase flexibility and withstand severe clutching action, bending or twisting, heavy loads and backside idler applications. Oil and heat resistant. Aramid Fibre Cord is the family name of nylons that include Kevlar.

Brand: Cub Cadet Non-Genuine, Kioti Daedong Non-Genuine, Maport Non-Genuine, Massey Ferguson Non-Genuine, Morrison Non-Genuine, MTD Non-Genuine, Rover Non-Genuine, Troy Bilt Non-Genuine, and White Outdoor Non-Genuine

Product Line: Belt, Blade Belt, Cutter Deck Belt, Cutter Drive Belt, Deck Belt, and V-Belt
