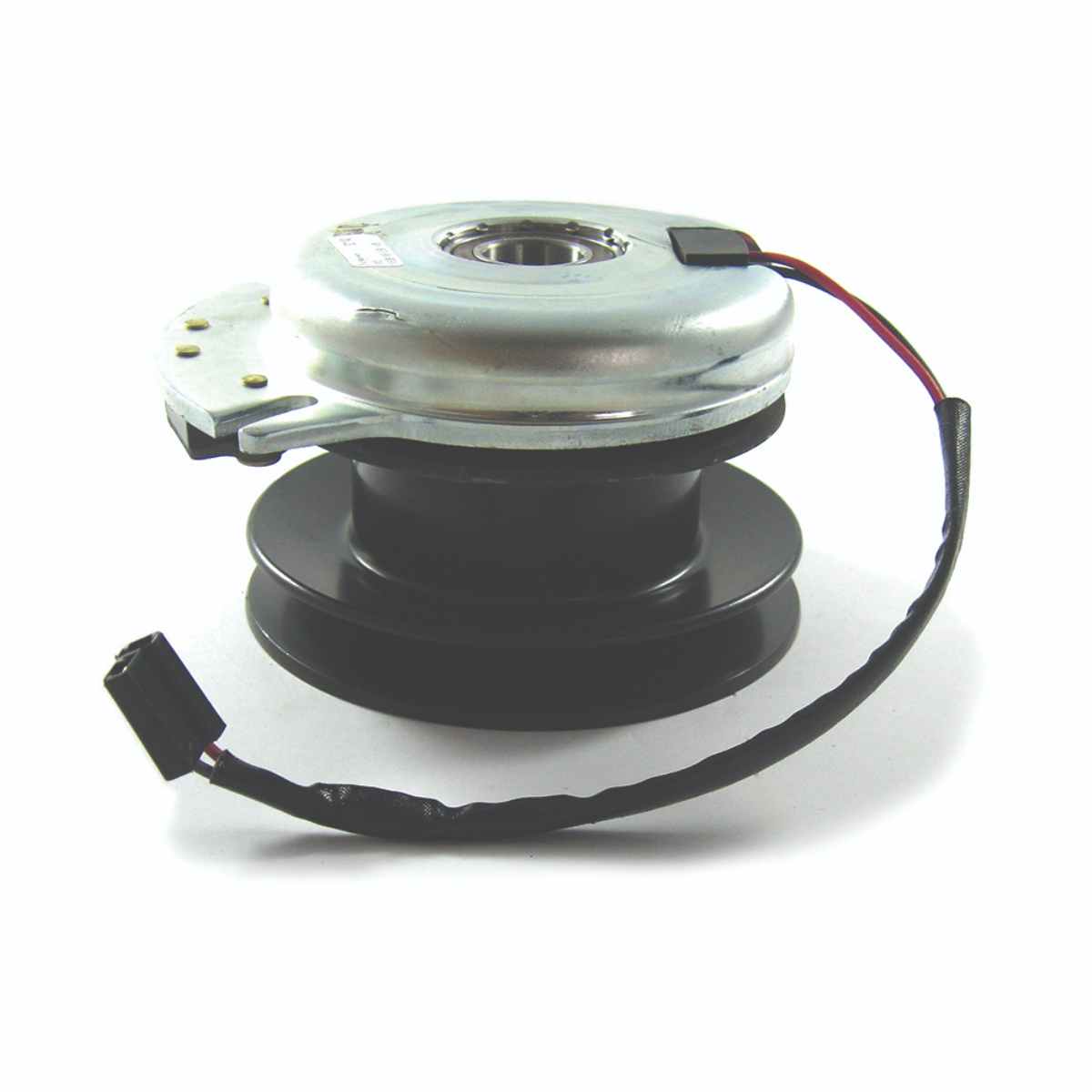

Cub Cadet Electric PTO Clutch Assembly (CLL5691)

Description: Electric PTO Clutch Assembly

Replaces OEM:

Massey Ferguson:917-04163A
MTD & Cub Cadet 717-04163 and 917-04163
Warner: 5217-32 and 5217-43
Rover: 917-04163A

Inside Diameter: (inches) 1
Inside Diameter: (mm) 25
Pulley Diameter : (inches) 6
Pulley Diameter : (mm) 152

Fits: Cub Cadet 42" cut LT1042 13AP11CH630 Hydro 23hp (2005), LT1042 13AX11CG630 Hydro 19hp (2005), LT1042 13AX11CG630 Hydro 19hp (2006) models, LT1042 13AX11CG630 Hydro 19hp (2008), LTX1042 13AX91AG330 Hydro 19hp (2009) models.

Fits: Cub Cadet 46" cut LT1046 13AP11CH630 Hydro 23hp (2008) models.

Fits: Massey Ferguson 96cm (38" cut) MF 38-15SD 13AV91CF395 (2010, 2011) models.

Fits: Massey Ferguson 106cm (42" cut) MF 42-20SD 13AP91CS395 (2010, 2011 & 2012), MF42-20SD 13BP91CS395 (2012) models.

Fits: MTD Yardman 42" cut 13AP604G671 Autodrive 20hp (2006 & 2008) electric PTO models, 13AP90YG371 Autodrive 20hp (2009) models, 13AV604G371 Autodrive 16hp (2008) models, 13AV604G671 Autodrive 16hp (2008) models, 13AV604G671 Autodrive 20hp (2006) electric PTO models, 13AV90YG371 Autodrive 16hp (2009) models.

Fits: MTD Yardman 46" cut 13AP604H671 Autodrive 23hp (2007) model (Note: this model used two different clutches, please check your clutch carefully before ordering)

Fits: Rover Rancher 20/42 Hydrostatic 2010 models and 17/42 Autodrive 2010 models.

Features: Manufactured by an OEM supplier. Operates in a counterclockwise direction.

Standard Pack Quantity: 1

Footnote: Use with "B" section, 69 series belt.

Please Note: IMPORTANT INFORMATION ON ELECTRIC CLUTCHES

Over the counter sales of clutches as spare parts should be discouraged. WHY? - The main causes of failures to electric clutches are due to faults with the battery and/or charging circuits not providing the correct current to operate the clutch adequately leading to premature failure. Electric PTO clutches are a specialist component that should only be fitted by a servicing dealer with the correct equipment to test both the charging circuits and battery condition. It is therefore the responsibility of the servicing dealer to test these items prior to installing a new clutch. Failure to do so will void warranty. Warranty covers normal use and does not cover damage or defect which results from alteration, accident, neglect, or improper clutch selection, installation, operation, or maintenance. Warranty covers faulty manufacture and/or workmanship.
GA Spares stocks electric clutches manufactured by an OEM supplier.

Brand: MTD - Non Genuine, Cub Cadet - Non Genuine, Rover - Non Genuine, and Warner

Product Line: Clutch and Electric
