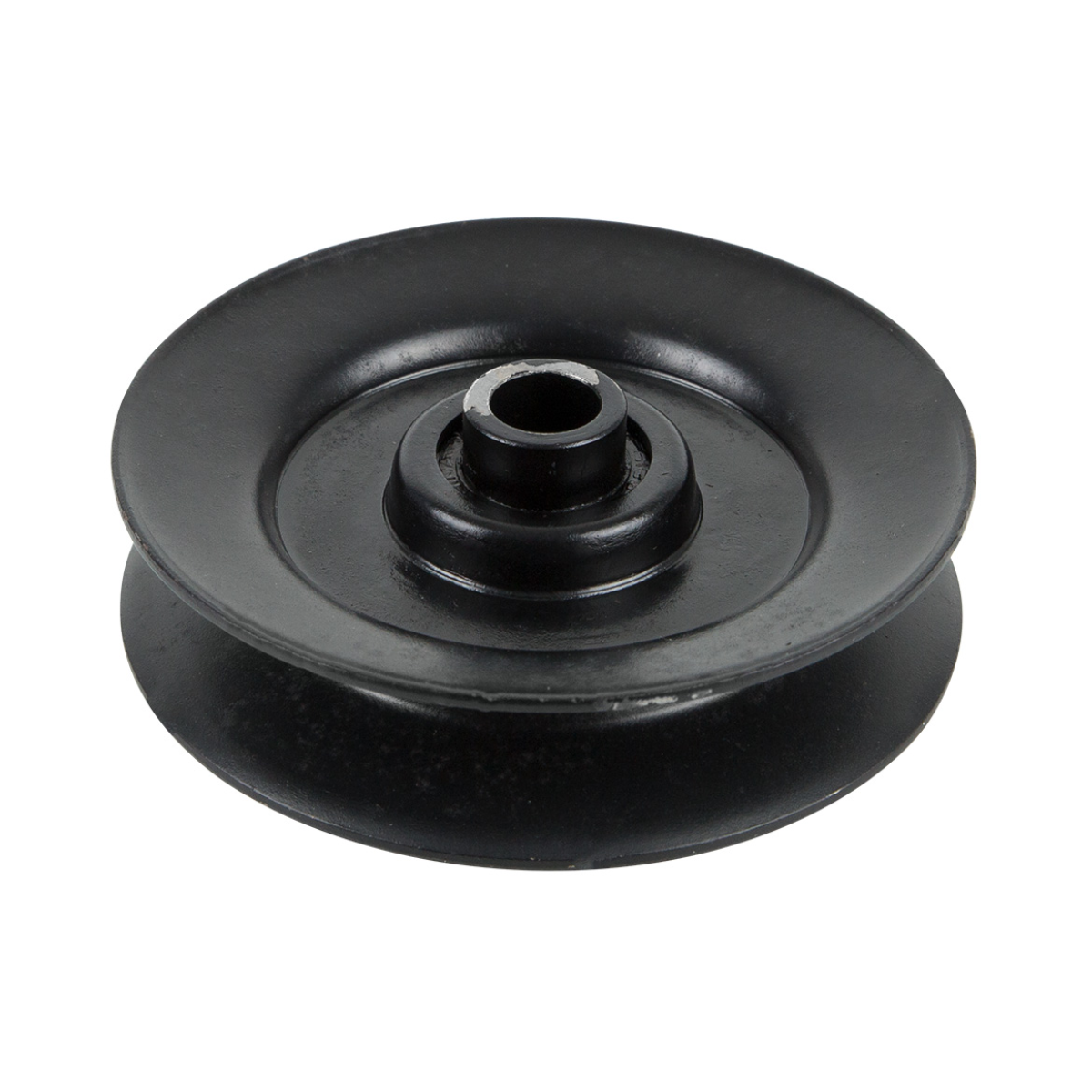

Cub Cadet Transmission V-Idler Pulley (PUL8581)

MASPORT / ROVER / MTD PULLEY V-IDLER TRANSMISSION Ax3.06 OD

Specifications

Description: Non-Genuine, Cub Cadet, Kioti Daedong, Masport, Massey Ferguson, Morrison, MTD, Rover, Scott Bonnar, Troy Bilt, Universal, and White Outdoor Transmission V-Idler Pulley - Steel, 3.0625" O.D

Replaces OEM:

Cub Cadet: 756-04325 and 756-04326

Kioti Daedong: 756-04325 and 756-04326

Masport: 756-04325 and 756-04326

Massey Ferguson: 756-04325 and 756-04326

Morrison: 756-04325 and 756-04326

MTD: 756-04325 and 756-04326

Rover: 756-04325 and 756-04326

Troy Bilt: 756-04325 and 756-04326

White Outdoor: 756-04325 and 756-04326

Centre Hole Type: Round

Centre Hole Diameter: (inches) 3/8"

Centre Hole Diameter: (mm) 9.525 mm

Height: (inches) 1"

Height: (mm) 25.4 mm

Pulley Diameter: (inches) 3 1/16" (3.0625")

Pulley Diameter: (mm) 77.78 mm

Pulley Dimension A: (inches) 3 1/16" (3.0625")

Pulley Dimension A: (mm) 77.78 mm

Pulley Dimension B: (inches) 2-1/8"

Pulley Dimension B: (mm) 53.9mm

Pulley Dimension C: (inches) 3/8"

Pulley Dimension C: (mm) 9.525 mm

Pulley Dimension D: (inches) 23/32"

Pulley Dimension D: (mm) 18.2mm

Pulley Dimension T: (inches) .060"

Pulley Dimension T: (mm) 1.52mm

Pulley Height : (inches) .060"

Pulley Height : (mm) 15.2mm

Section Width (inches): A Section - 1/2" (12.7mm)

Fits: 30" (762 mm) cut Cub Cadet MiniRider Plus CC115 (model 13BC26JD330 [2] year 2013 and 13B226JD330 [2] years 2014 to 2015) and MiniRider Plus CC115MR (model 13AC26JD330 [2] year 2012), 42" (1067 mm) cut Cub Cadet LT1042 [LT 1042] (model 13AX11CG630 [1] 2008 onwards), LTX1042 [LTX 1042] (models 13AP91AS330 [2] years 2012 to 2013, 13AP93AS330 [2] year 2014, 13BP91AS330 [2] year 2013, 13AX91AG330 [2] year 2010 and 13AX91AS330 [2] years 2010 to 2012), 46" (1170 mm) cut Cub Cadet LT1046 [LT 1046] (model 13AP11CH010 [2] year 2008), 50" (1270 mm) cut Cub Cadet i1050 [i 1050] (model 17AF9BKP330 [1] years 2008, 2012), LTX1050 [LTX 1050] (models 13AP91AP330 [2] years 2011 to 2013, 13AQ93AP330 [2] year 2014 and 13BQ93AP330 [2] year 2014), 54" (1372 mm) cut Cub Cadet GTX1054 [GTX 1054] (models 14AZ94AK330 [2] year 2013 and 14BZ94AK330 [2] year 2014) ride-on lawn mower models as a transmission v-idler pulley.

Product Line Notes: The number in brackets after the model is listed, is the quantity of this V-Idler pulley required per unit.

Fits: 38" (965 mm) cut Kioti Daedong DLT1538 (models 13AM76KF396 [1] years 2009 to 2011 and 13AV76KF396 [1] year 2012), 42" (1067 mm) cut Kioti Daedong DLT1942 (models 13AJ90KS396 [1] years 2010 to 2011 and 13AO90KG396 [1] years 2009 to 2010), DLT2042 (model 13AP90KS396 [1] year 2012), 50" (1270 mm) cut Kioti Daedong DLT2350 (model 13AR92KP396 [2] years 2009 to 2011) ride-on lawn mower models as a transmission v-idler pulley.

Product Line Notes: The number in brackets after the model is listed, is the quantity of this V-Idler pulley required per unit.

Fits: 24" (610 mm) cut Masport Mini Rider (models 552950 [2] years 2016 to 2017 and 552959 [2] years 2019 to 2020),30" (770 mm) cut Masport RER3000 [RER 3000] 10.5/30SD and 11.5/30SD (models 552853 [2] years 2014 to 2017, 552896 [2] years 2019 to 2021 and 553007 [2] years 2018 to 2019), 38" (965 mm) cut Masport A3800 [A 3800] 17.5/38SD (model 552854 [1] years 2014 to 2016), G3800 [G 3800] 420cc/38SD (model 552930 [1] years 2016 to 2017), 42" (1067 mm) cut Masport A4200 [A 4200] 17.5/42SD (model 552925 [1] years 2016 to 2021) and H4200 [H 4200] (model 552855 [2] years 2014 to 2015), ride-on lawn mower models as a transmission v-idler pulley.

Product Line Notes: The number in brackets after the model is listed, is the quantity of this V-Idler pulley required per unit.

Fits: 38" (965 mm) cut Massey Ferguson MF38-15SD (model 13AV91CF395 [2] years 2010 to 2011), 42" (1067 mm) cut Massey Ferguson MF42-20SD (models 13AP91CS395 [2] years 2010 to 2012 and 13BP91CS395 years 2012 to 2013), 50" (1270 mm) cut Massey Ferguson MF50-25SD (models 13AQ92CP395 [2] year 2009, 14AQ94CP395 [2] year 2011 and 13AW92CP395 [2] year 2009), 54" (1370 mm) cut Massey Ferguson MF54-25SD (model 14AQ94CK395 [2] years 2012 to 2013) ride-on lawn mower models as a transmission v-idler pulley.

Product Line Notes: The number in brackets after the model is listed, is the quantity of this V-Idler pulley required per unit.

Fits: 24" (610 mm) cut Morrison Mini Rider (model 552851 [2] years 2014 to 2018), 42" (1067 mm) cut Morrison G420 [G 420} 17.5/42SD (model 552822 [1] years 2014 to 2016) ride-on lawn mower models as a transmission v-idler pulley.

Product Line Notes: The number in brackets after the model is listed, is the quantity of this V-Idler pulley required per unit.

Fits: 38" (965 mm) cut MTD Yard Machines (models 13AC762F370 [1] year 2008), 13A1762F029 [1] years 2008 to 2009, 13A1762F370 [1] year 2006 and 13A1762F670 [1] years 2005 to 2006), Yard Machines 638 RL (model 13AC762F308 [1] year 2010), MTD 13538 [13.5/38] (model 13AC762F308 [1] year 2009), MTD 145/38 [14.5/38, 14538] (models 13AM762F306 [1] year 2011 and 13AM765F306 [1] years 2012 to 2013), MTD 42038 [420/38] (models 13A2761F306 [1] year 2011, 13A2765F306 [1] years 2012 to 2013 and 13B2765F306 [1] years 2014 to 2015), 42" (1067 mm) cut MTD Yard Machines (model 13AN772G370 [1] year 2009), Yard Machines 742RL (model 13AN772G329 [1] year 2009), Yard-Man YM1642 (model 13AV90YG371 [1] year 2009), Yard-Man YM2042 (model 13AP90YG371 [1] year 2009), MTD 17/42 (model 13AV765S306 [1] years 2014 to 2015), MTD 17542 [175/42] (models 13AN772G308 [1] year 2009 and 13AN775S306 [1] years 2011 to 2012), MTD 20/42 (model 13AT785S306 [1] years 2014 to 2015), 46" (1170 mm) cut MTD 2046 [20/46] (models 13AT785T306 [1] years 2012 to 2013 and 13AT78KT306 [2] year 2011), 50" (1270 mm) cut MTD Yard-Man YM2350 (model 13AP90YP371 [1] year 2009 to 2011) ride-on lawn mower models as a transmission v-idler pulley.

Product Line Notes: The number in brackets after the model is listed, is the quantity of this V-Idler pulley required per unit.

Fits: 24" (610 mm) cut Rover Micro Rider (models 13A326JC333 [2] years 2016 to 2020, 13A426JC333 [2] year 2021, 13B326JC333 [2] years 2019 to 2020 and 13B426JC333 [2] years 2021 to 2022), 30" (760 mm) cut Rover Mini Rider (models 13A226JD333 [2] year 2012, 13B226JD333 [2] years 2013 to 2015 and 13C226JD333 [2] years 2015 to 2017), Mini Rider 382/30 (models 13A721JD333 [1] years 2017 to 2022 and 13A726JD333 [2] years 2017 to 2022),38" (965 mm) cut Rover Raider 1438 [14/38] (models 13AM76TF333 [1] years 2010 to 2014 and 13AM76WF333 [1] year 2014), Raider 1538 [15/38] (model 13AM91WF333 [2] years 2012 to 2013 and 13AV93WF333 [2] year 2014), Rancher 547/38 (model 13A878WF333 [1] years 2020 to 2022), Ranger 42038 [420/38] (model 13A2761F333 [1] years 2011 to 2012), Rover 42038 [420/38] (model 13A276WF333 [1] years 2015 to 2016), 42" (1067 mm) cut Rover Raider 1742 [17/42] (models 13AN91WS333 [2] years 2012 to 2013, 13AV76WS333 [1] year 2016 and 13AV93WS333 [2] year 2014), Raider 1842 [18/42] (model 13AO77TS333 [1] years 2010 to 2012), Raider 2042 [20/42] (models 13AP93WS333 [2] year 2014 and 13BP93WS333 [2] year 2014), Rancher 1742 [17/42] (model 13AV90KS333 [1] years 2010 to 2012), Rancher 2042 [20/42] (model 13AP91KS333 [2] years 2010 to 2012), Rancher 2242 [22/42] (model 13AP91WS333 [2] years 2012 to 2013),46" (1170 mm) cut Rover Raider 1946 [19/46] (model 13AO91WT333 [2] years 2012 to 2013) and Rancher 2246 [22/46] (model 13AP93WT333 [2] year 2014) to 2015)ride-on lawn mower models as a transmission v-idler pulley.

Product Line Notes: The number in brackets after the model is listed, is the quantity of this V-Idler pulley required per unit.

Fits: 24" (610 mm) cut Scott Bonnar Mini Rider (model 13A326JC373 [2] years 2013 to 2016) ride-on lawn mower models as a transmission v-idler pulley.

Product Line Notes: The number in brackets after the model is listed, is the quantity of this V-Idler pulley required per unit.

Fits: 30" (760 mm) cut Troy Bilt Neighborhood Rider (models 13A226JD309 [2] year 2012 and 13B226JD309 [2] years 2013 to 2014), 38" (965 mm) cut Troy Bilt Pony (model 13A177KF309 [1] year 2015) and TB3813 (model 13AC76KF309 [1] year 2011), 42" (1067 mm) cut Troy Bilt Pony (models 13AN77KS309 [1] years 2012 to 2015 and 13WN77KS011 [1] year 2011), TB4216 (model 13AV90KS309 [1] year 2011) and TB4220 (model 13AP90KS309 [1] years 2011 to 2014),46" (1170 mm) cut Troy Bilt Horse XP (model 13AX79KT309 [1] years 2012 to 2013) and TB46 (model 13AL78KT309 [1] year 2015) ride-on lawn mower models as a transmission v-idler pulley.

Product Line Notes: The number in brackets after the model is listed, is the quantity of this V-Idler pulley required per unit.

Fits: A Universal multi-fit V-Idler pulley suitable for use on many selected outdoor power equipment applications.

Fits: 38" (965 mm) cut White Outdoor LT-125 (model 13AC76GF390 [1] year 2010) and 42" (1067 mm) cut White Outdoor LT-175 (model 13AN77GS390 [1] year 2011) and Mustang (model 13AN77GG390 [1] year 2009) ride-on lawn mower models as a transmission v-idler pulley.

Product Line Notes: The number in brackets after the model is listed, is the quantity of this V-Idler pulley required per unit.

Standard Pack Quantity: 1

Brand: Cub Cadet Non-Genuine, Kioti Daedong Non-Genuine, Masport Non-Genuine, Massey Ferguson Non-Genuine, Morrison Non-Genuine, MTD Non-Genuine, Rover Non-Genuine, Scott Bonnar Non-Genuine, Troy Bilt Non-Genuine, and White Outdoor Non-Genuine

Product Line: Idler Pulley, V-Idler Pulley, Transmission V-Idler Pulley, and Pulley V-Idler
