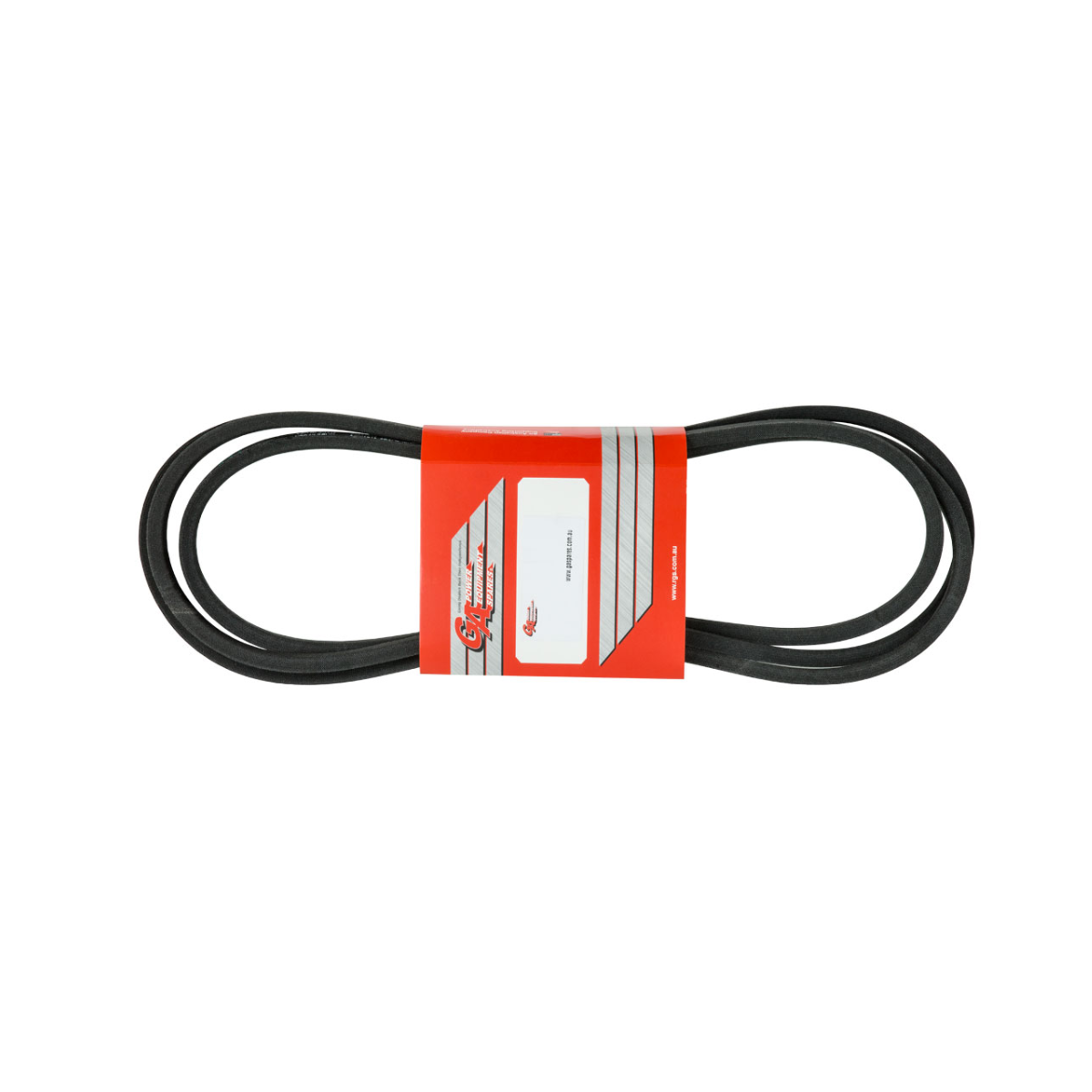

Husqvarna Cutter Deck Belt (BEL7613)
SKU: BEL7613
This item is sold out. You can still pre-order here or call (02) 9584 5885 to discuss.
$142.00
CUB CADET 60" / HUSQVARNA 48" / MASSEY FERGUSON 60" & 72" CUTTER DECK BELT
Specifications
Description: Description: Non-Genuine BigDog 48" Cut, Cub Cadet 60" & 72" Cut, Husqvarna 48" Cut, HUSTLER 48" Cut, Massey Ferguson 60" Cut Cutter Deck Belt
Replaces OEM:
BigDog: 604830
Cub Cadet: 754-04319 and 954-04319
Husqvarna: 574 84 56-02
HUSTLER: 604830
Massey Ferguson: 754-04319 and 954-04319
Deck (inches) 48", 60" & 72" Cut
Deck (mm) 1220 mm, 1524 mm & 1828 mm
Deck (cm) 122 cm, 152.4 cm & 182.8 cm
Length Inside Circumference: 132"
Length Inside Circumference: 3352.8 mm
Length Outside Circumference: 135"
Length Outside Circumference: 3429 mm
Width: (inches) 5/8"
Width: (mm) 15.875 mm
Fits: 48" (1220 mm) cut BigDog Alpha MP (models 932947EX, 936526EX and 937581EX) zero turn radius (ZTR) ride-on models as the cutter deck belt.
Belt Position & Size: BigDog Cutter Deck Belt (5/8" Wide x 135" O.C)
Qty required per unit: 1 belt required for 48" cut
Fits: 60" (1524 mm) cut Cub Cadet Pro Z 500 S Series PRO Z 560S [Z 560S, Z560S, PRO Z 560 KW, 560-S] (models 53AIHJUV330 year 2022 and 53LIHJUV050 years 2015 to 2016), Pro Z 700 L Series KW 760L [760L] (model 53AIHKTV330 year 2017) and Pro Z 700 S Series 760S [KW 760-S] (model 53AIHKUV330 years 2018 to 2022), Tank LZ Series LZ-60 (models 53AH2PTD330 year 2012 and 53BH2PTD330 years 2014 to 2016) and Tank SZ Series SZ-60 (model 53AI2PUD330 years 2012 to 2016) zero turn radius (ZTR) ride-on models as the spindle to spindle drive, lower cutter deck belt.
Belt Position & Size: Cub Cadet Spindle to Spindle Drive, Lower Cutter Deck Belt (5/8" Wide x 135" O.C)
Qty required per unit: *1 belt required for 60" cut
Product Line Notes: *Please note: There is more than one belt used on the above cutting decks, this is the spindle to spindle lower drive belt. There is also two different upper PTO to deck belts used across these models as per below:
- For the Tank models listed above use with upper PTO to deck belt: Replaces OEM's 754-04296 and 954-04296 [which we don't currently stock].
-
For the PRO Z models listed above use with upper PTO to deck belt: Replaces OEM's 754-05128 and 954-05128 which is our part number BEL954-05128.
Fits: 72" (1828 mm) cut Cub Cadet Pro Z 900 S Series 972S [KW 972-S] (model 53AIHMUY330 years 2018 to 2022), Pro Z 972 SD [Pro Z 900 KW 972- SD Dually - steering wheel model] (model 53TIHMUY330 years 2019 to 2022) and PRO Z 972 SDL [972-SDL, KW 972SDL Dually - steering wheel model] (models 53AILMUY330 year 2021 and 53BILMUY330 year 2022) zero turn radius (ZTR) ride-on models as the spindle to spindle drive, lower cutter deck belt.
Belt Position & Size: Cub Cadet Spindle to Spindle Drive, Lower Cutter Deck Belt (5/8" Wide x 135" O.C)
Qty required per unit: *1 belt required for 72" cut
Product Line Notes: *There is more than one belt used on the above cutting decks, this is the spindle to spindle lower drive belt. There is also an upper PTO to deck belt, replaces OEM's 754-05129 and 954-05129 which is our part number BEL954-05129.
Fits: 48" (1220 mm) cut Husqvarna fabricated deck models including TS348 [TS 348] (model 96041038700 years 2015 to 2016),YTH2648TDF (model 96041017400 year 2010) and YTH2648TDRF (models96041026401 years 2011 to2012, 96041026402 year 2013 and 96041026403 years 2014 to 2015) ride-on lawn mower models as the cutter deck belt.
Belt Position & Size: Husqvarna Cutter Deck Belt (5/8" Wide x 135" O.C)
Qty required per unit: 1 belt required for 48" cut
Fits: 48" (1220 mm) cut HUSTLER Raptor SD (models 932566EX, 936542EX and 938399EX) zero turn radius (ZTR) ride-on models as the cutter deck belt.
Belt Position & Size: HUSTLER Cutter Deck Belt (5/8" Wide x 135" O.C)
Qty required per unit: 1 belt required for 48" cut
Fits: 60" (1524 mm) cut Massey Ferguson MF60-27LZ (model 53AI2PTD395 years 2012 to 2016) zero turn radius (ZTR) ride-on models as the spindle to spindle drive, lower cutter deck belt.
Belt Position & Size: Massey Ferguson Spindle to Spindle Drive, Lower Cutter Deck Belt (5/8" Wide x 135" O.C)
Qty required per unit: *1 belt required for 60" cut
Product Line Notes: *There is more than one belt used on the above cutting decks, this is the spindle to spindle lower drive belt. There is also an upper PTO to deck belt, replaces OEM's 754-04296 and 954-04296 [which we don't currently stock].
Standard Pack Quantity: 1
Footnote: Our premium quality belts are manufactured with high-strength Aramid fibre cords for heavy duty applications and severe duty cycles. These belts have a drier cover fabric that is designed to increase flexibility and withstand severe clutching action, bending or twisting, heavy loads and backside idler applications. Oil and heat resistant. Aramid Fibre Cord is the family name of nylons that include Kevlar.
Brand: BigDog Non-Genuine, Cub Cadet Non-Genuine, Husqvarna - Non Genuine, HUSTLER Non-Genuine, and Massey Ferguson Non-Genuine
Product Line: Belt, Blade Belt, Cutter Deck Belt, Cutter Drive Belt, Deck Belt, and V-Belt
