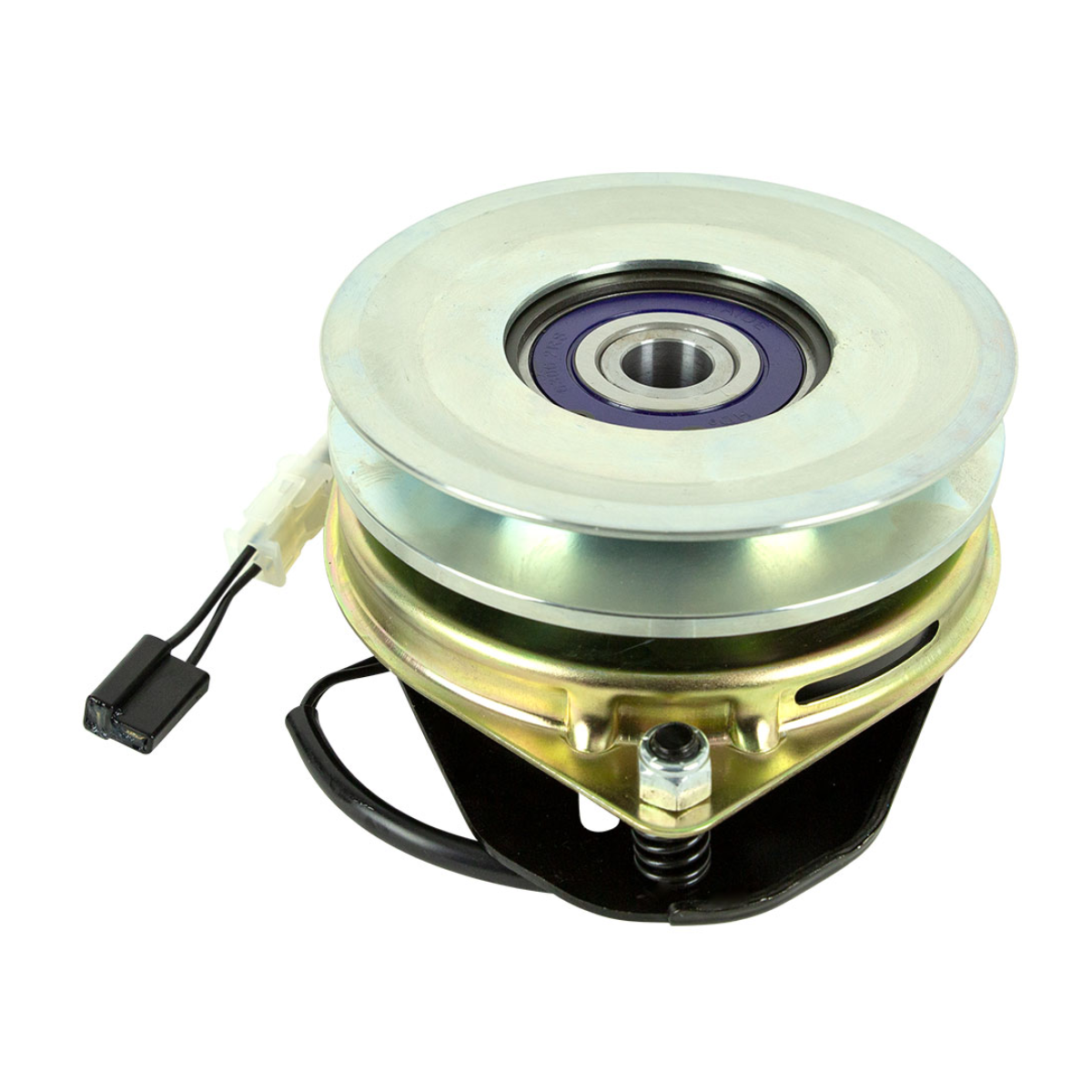

Husqvarna Electric PTO Clutch Assembly (CLL8484)

ELECTRIC PTO CLUTCH 1" ID X 5.95" PULLEY

Specifications

Description: Non-Genuine Craftsman, Dixon, Husqvarna, Jonsered, Ogura Electric PTO ClutchAssembly

Replaces OEM:

Craftsman 179334, 400008, 414336 and 471717

Dixon 400008, 532 400008 and 532 40 00-08

Husqvarna 532179334, 532 17 93-34, 532400008, 532 40 00-08, 532 400008, 532414336, 532 41 43-36, 532471717, and 532 47 17-17

Jonsered 400008

OGURA GT1A-EH07

Crankshaft Diameter: 1"

Inside Diameter: (inches) 1"

Inside Diameter: (mm) 25.4 mm

Pulley Diameter : (inches) 5.95"

Pulley Diameter : (mm) 151.13 mm

Fits: 42" (1067 mm) cut Craftsman selected models including but not limited to Yard Series YT4000 (model 98636 or 917.986360 or CR98636) and YT4500 (model 25574 or 917.25574 or CR25574) ride-on lawn mower models.

Fits: 46" (1170 mm) cut Craftsman selected models including but not limited to Yard Series YT4000 (model 98637 or 917.98637 or CR98637) and YT4500 (model 25572 or 917.25572 or CR25572) ride-on lawn mower models.

Fits: 48" (1220 mm) cut Craftsman selected models including but not limited to Professional Series PTY9000 (models 28972 or 917.28972 or CR28972 years 2009 to 2010) ride-on lawn mower models.

Fits: 54" (1372 mm) cut Craftsman selected models including but not limited to Professional Series PTY9000 (models 28973 or 917.28973 or CR28973 years 2009 to 2010) ride-on lawn mower models.

Fits: 48" (1220 mm) cut Dixon selected models including but not limited to 25K48H (D25KH48 model 96041018500 years 2010 to 2012) ride-on lawn mower models and RAM 48 ZT (model 966611601 year 2011 to 2012) zero turn radius (ZTR) ride-on models.

Fits: 38" (965 mm) cut Husqvarna selected models including but not limited to CTH2138R (model 96051012001 year 2014) ride-on lawn mower models.

Fits: 42" (1067 mm) cut Husqvarna selected models including but not limited to CTH2642TR (model 96051012101 year 2014), CTH2642TRE (model 96051005700 years 2012 to 2013), YTH2242TDF (model 96041017300 year 2010), YTH2242TDRF (models 96041023701 years 2011 to 2012 and 96041023704 years 2014 to 2015) ride-on lawn mower models and RZ4222TF (model 96703650100 years 2012 to 2015) zero turn radius (ZTR) ride-on models.

Fits: 46" (1170 mm) cut Husqvarna selected models including but not limited to YTH2246TDR (model 96041027203 years 2014 to 2015) and YTH2546TD (model 96041005503 year 2009) ride-on lawn mower models.

Fits: 48" (1220 mm) cut Husqvarna selected models including but not limited to YTH2648TDF (model 96041017400 year 2010) and YTH2648TDRF (model 96041026401 years 2011 to 2012) ride-on lawn mower models and EZ24T (model 966659601 years 2011 to 2012) and EZ4824TF (models 96665950200 years 2012 to 2015 and 96700380300 years 2012 to 2013) zero turn radius (ZTR) ride-on models.

Fits: 54" (1372 mm) cut Husqvarna selected models including but not limited to RZ5424T (model 96700370100 year 2013) zero turn radius (ZTR) ride-on models.

Fits: 48" (1220 mm) cut Jonsered selected models including but not limited to Z48F (model 96732790100 year 2015) zero turn radius (ZTR) ride-on models.

Fits: Ogura GT1A-EH07 non-genuine clutch assembly fits Ogura OEM GT1A-EH07 fitment applications.

Features:

Counter-clockwise rotation

Suitable for either 1/2" or 5/8" belt

95 ft. lbs. torque

High torque cool coil technology

High temperature bearing

Replaceable pulley bearing

Super smooth precision machined 5.95" (151.13 mm) pulley

Integrated water tight wire harness

Standard Pack Quantity: 1

Please Note: Electric PTO Clutches are a specialist component that should only be fitted by a servicing dealer with the correct equipment to test both the charging circuits and battery condition, over the counter sales of clutches as spare parts should be discouraged. WHY? - The main causes of failures to electric clutches are due to faults with the battery and or charging circuits not providing the correct current to operate the clutch adequately leading to premature failure. It is therefore the responsibility of the servicing dealer to test these items prior to installing a new clutch, failure to do so will void warranty. Warranty covers normal use and does not cover damage or defect which results from alteration, accident, neglect, or improper clutch selection, installation, operation, or maintenance. Warranty covers faulty manufacture and or workmanship.

Brand: Craftsman Non-Genuine, Dixon Non-Genuine, Husqvarna Non-Genuine, Jonsered Non-Genuine, and Ogura Non-Genuine

Product Line: Assembly - Electric Clutch, Clutch - Electric, and Electric PTO Clutch Assembly
