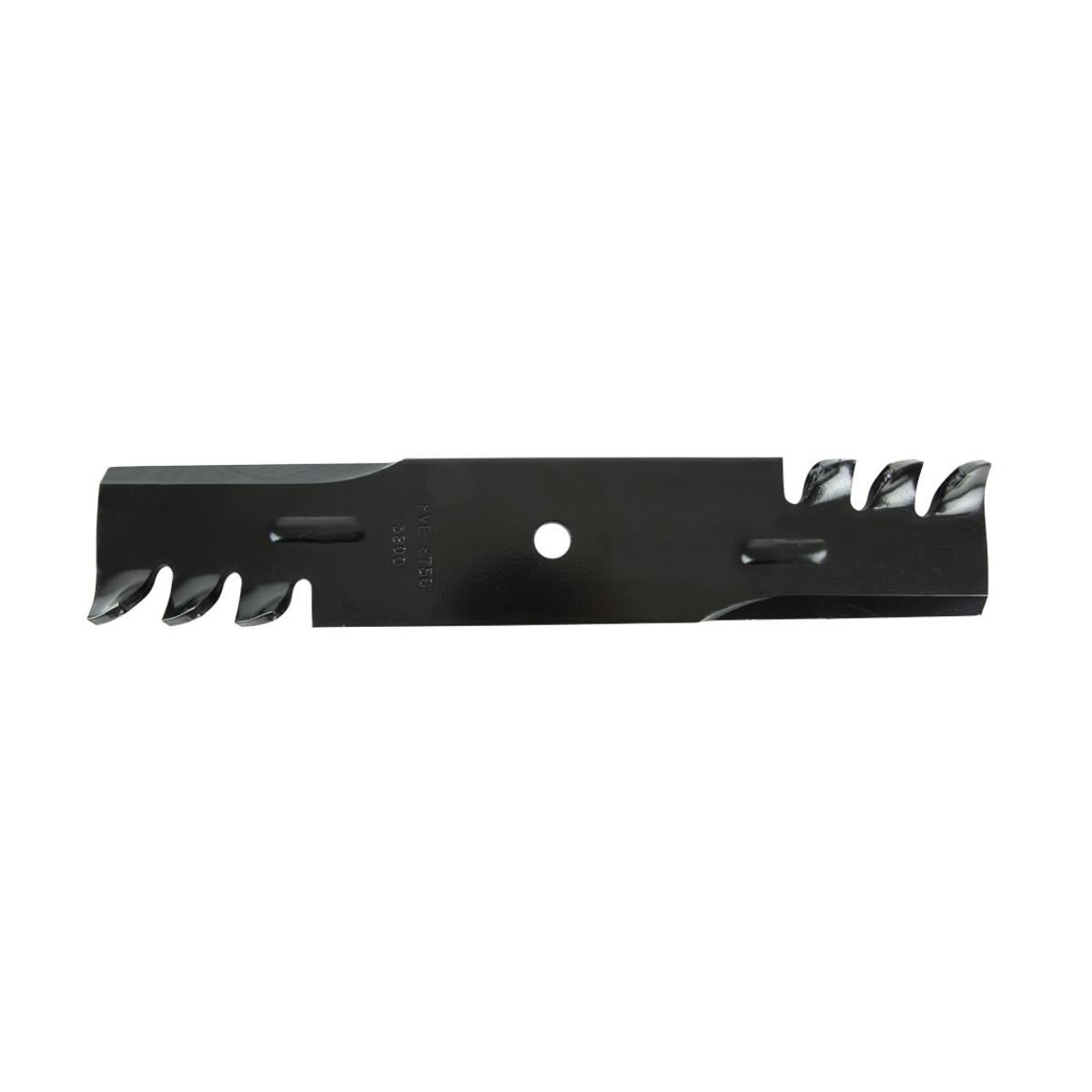

Hustler 48" Ride-On Mower Mulch Blade (BLR8287)

BAD BOY / GREAT DANE / SCAG 16-1/2" COPPERHEAD MULCHER BAR BLADE, HEAVY DUTY

Specifications

Description: Non-Genuine Bad Boy, BigDog, Great Dane, HUSTLER, Scag Selected 48" And 50" Cut Copperhead Mulcher Bar Blade

Replaces OEM:

Bad Boy 038-5350-00

BigDog 796631

Great Dane D18086 and GDU10230

HUSTLER 796631

Scag 482877

Centre Hole Diameter: (inches) 5/8"

Centre Hole Diameter: (mm) 15.875 mm

Deck (inches) 48", 50" cut

Deck (mm) 1220 mm, 1270 mm cut

Deck (cm) 122 cm, 127 cm cut

Length: (in) 16 1/2"

Length: (mm) 419.1 mm

Thickness: (inches) 0.2500"

Thickness: (mm) 6.35 mm

Width: (inches) 3"

Width: (mm) 76.2 mm

Centre Hole Type: Round

Fits: 50” (1270 mm) cut Bad Boy selected models including but not limited to Bad Boy 5000 ZT, 27 Pro zero turn radius (ZTR) ride-on models.

Product Line Notes: For a standard bar blade option use our part number BLR7668.

Qty required per unit: 3 blades required for 50" cut

Fits: 48” (1220 mm) cut BigDog selected models including but not limited to Alpha MP (models 932947EX and 936526EX), “R” series (model 931493AU), Stout (models 933549EX, 933747EX, 935502EX and 937649EX) zero turn radius (ZTR) ride-on lawn mower models.

Product Line Notes: For a standard bar blade option use our part number BLR7668.

Qty required per unit: 3 blades required for 48" cut

Fits: 48” (1220 mm) cut Great Dane including but not limited to Great Dane Chariot GCHKW1948S (model 992609), Chariot (model GCKA1948S, model GCBV2348S and model GCKH2348S), Chariot LX, Chariot JR. (model GDRZ19KAE serial numbers 453000 to 453999 and model GDRZ23KAE serial numbers 454000 to 454999), Super Surfer (model GDSS17KA serial numbers 440000 to 440999 and model GDSS17KAE serial numbers 441000 to 441999), Super Surfer series II (model GSKH1848S, model GSKA1948S and model GSKW1948S) zero turn radius (ZTR) ride-on models and Great Dane Scamper HG and Scamper NB Loop walk behind slashers.

Product Line Notes: For a standard bar blade option use our part number BLR7668.

Qty required per unit: 3 blades required for 48" cut

Fits: 48” (1220 mm) cut HUSTLER selected models including but not limited to HUSTLER Dash XD (model 940767EX), FasTrak (models 930107EX, 933424EX, 933523EX, 938704EX and 940346EX), FasTrak SDX (models 938779EX and 940411EX), Raptor Flip-Up (model 935288EX), Raptor SD (models 932566EX and 936542EX), Raptor XD (model 940510EX), Raptor XDX (model 941492EX), SuperDuty (model 933481EX), SuperDuty X (model 933945EX) and X-One (models 933135EX, 934133EX and 934497EX) zero turn radius (ZTR) ride-on models.

Product Line Notes: For a standard bar blade option use our part number BLR7668.

Qty required per unit: 3 blades required for 48" cut

Fits: 48” (1220 mm) cut Scag selected models including but not limited to Scag STC48V‑24BS zero turn radius (ZTR) ride-on models.

Product Line Notes: For a standard bar blade option use our part number BLR7668.

Qty required per unit: 3 blades required for 48" cut

Features: Copperhead Mulcher Blade, flat and fluted, right hand cut

Standard Pack Quantity: 1

Note: All bar blades are sold as singles, order the quantity required to make up a set.

Please Note: This blade replaces our Toothed Mulcher blade part number BLR5989.

Brand: Copperhead, Bad Boy - Non-Genuine, BigDog - Non-Genuine, and Great Dane - Non-Genuine

HUSTLER - Non-Genuine and Scag - Non-Genuine

Product Line: Bar Blade, Blade, Copperhead Mulcher Blade, Ride-On Blade, and Mulcher Blade
