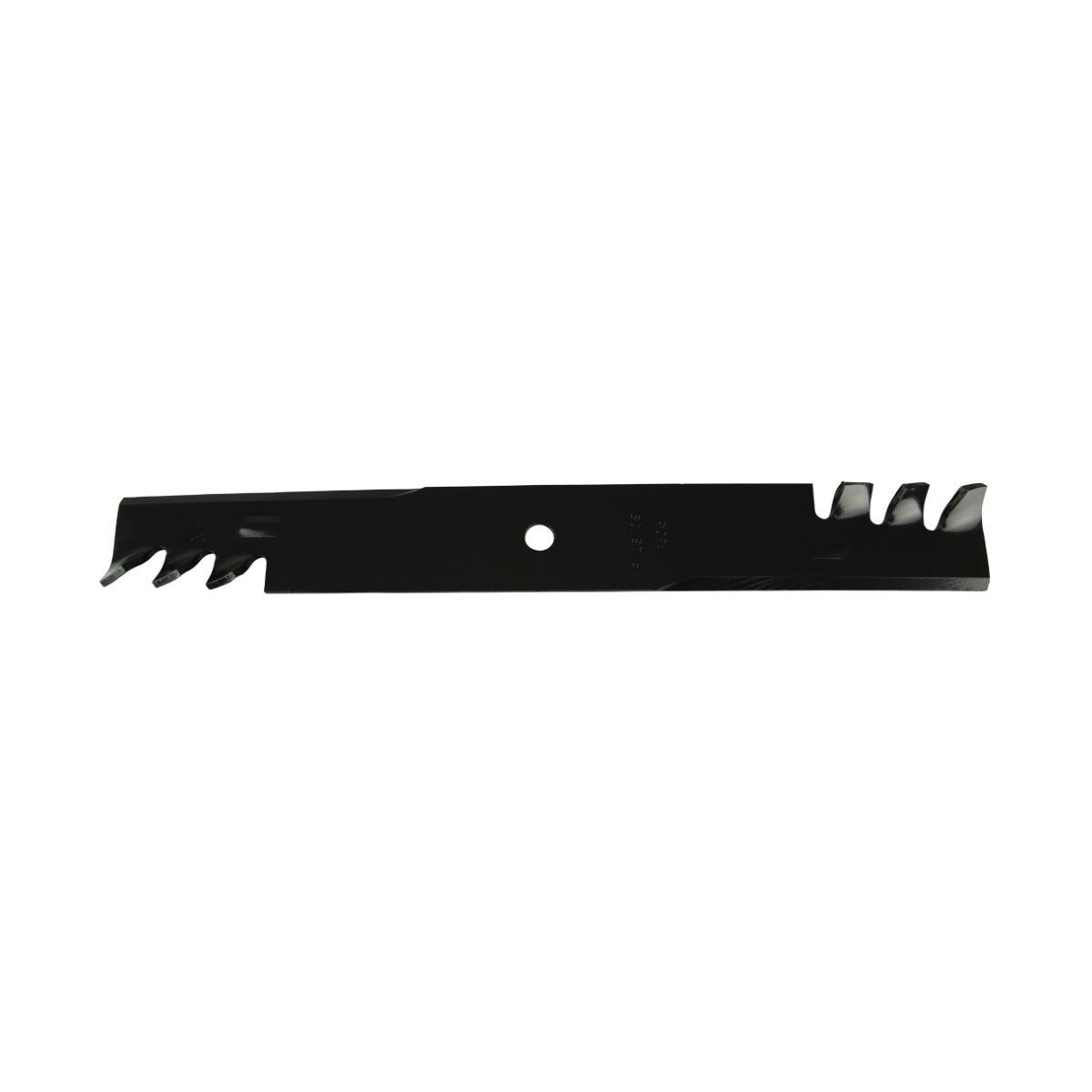

Hustler Ride-On Mower Mulch Blade (BLR8164)

BIGDOG / DIXON / HUSTLER 20-1/2" COPPERHEAD MULCHER BAR 2 X 42" / 3 X 60" CUT H/DUTY

Specifications

Description: Non-Genuine Bad Boy, BigDog, Dixon, Exmark, GRAVELY, HUSTLER, TORO Selected 42" and 60" Cut Copperhead Mulcher Bar Blade

Replaces OEM:

Bad Boy 038-2007-00, 038-6060-00 and 038-6050-00

BigDog 794214 and 794230

Dixon 9383, 12441 and 18931

Exmark 1-613112 and 613112

GRAVELY 46999

HUSTLER 794214 and 794230

TORO 1030301, 105-7718 and 105-7718-03

Centre Hole Diameter: (inches) 5/8"

Centre Hole Diameter: (mm) 15.875 mm

Length: (in) 20 1/2"

Length: (mm) 520.7 mm

Width: (inches) 3"

Width: (mm) 76.2 mm

Centre Hole Type: Round

Fits: 60" (1524 mm) cut Bad Boy Lightning series and Pup series zero turn radius (ZTR) ride-on models.

Qty required per unit: 3 blades required for 60" cut

Fits: 42" (1067 mm) cut BigDog "A" series (20 hp model 931345), "C" series (17.5 hp model 931428 and 18 hp model 931436) zero turn radius (ZTR) ride-on models.

Qty required per unit: 2 blades required for 42" cut

Fits: 60" (1524 mm) cut BigDog "R" Series (26 hp model 931535) zero turn radius (ZTR) ride-on models.

Qty required per unit: 3 blades required for 60" cut

Fits: 60” (1524 mm) cut Dixon selected models including 8025, ZTR560 (year 1993), ZTR5601 (years 1994 to 1996), ZTR6601 (years 1995 to 1996) zero turn radius (ZTR) ride-on models.

Qty required per unit: 3 blades required for 60" cut

Fits: 60” (1524 mm) cut Exmark selected models including Lazer Z, zero turn radius (ZTR) ride-on models.

Qty required per unit: 3 blades required for 60" cut

Fits: 60” (1524 mm) cut GRAVELY selected zero turn radius (ZTR) ride-on models.

Qty required per unit: 3 blades required for 60" cut

Fits: 42” (1067 mm) cut HUSTLER models as a mulcher blade option including selected Mini‑FasTrak and Mini Z, zero turn radius (ZTR) ride-on models.

Qty required per unit: 2 blades required for 42" cut

Fits: 60” (1524 mm) cut HUSTLER models including selected FasTrak Super Duty, HUSTLER Z and Super Z fitted with 60” cut XR‑7 decks, HUSTLER X‑One and Super Z fitted with 60” cut VX4 decks, zero turn radius (ZTR) ride-on models.

Qty required per unit: 3 blades required for 60" cut

Fits: 60” (1524 mm) cut TORO Z500 and Z528 Z Master zero turn radius (ZTR) models fitted with 7‑Gauge side discharge decks and Z500, Z553, Z550, Z555, Z557, Z558, Z560, Z580, Z580‑D, Z587L, Z588E, Z589, Z590‑D, Z593‑D, Z595‑D and Z597‑D Z Master zero turn radius (ZTR) models fitted with TURBO FORCE side discharge decks.

Features: Copperhead mulcher blade, flat and fluted and right hand cut

Standard Pack Quantity: 1

Note: All blade bars are sold as singles, order the quantity required to make up a set.

Please Note: For Toothed Mulcher blade options use our part numbers BLR6339 (2 1/2" wide) or BLR7481 (3" wide). For a standard bar blade option use our part number BLR6939.

Brand: Copperhead

Product Line: Copperhead Mulcher Bar Blade
