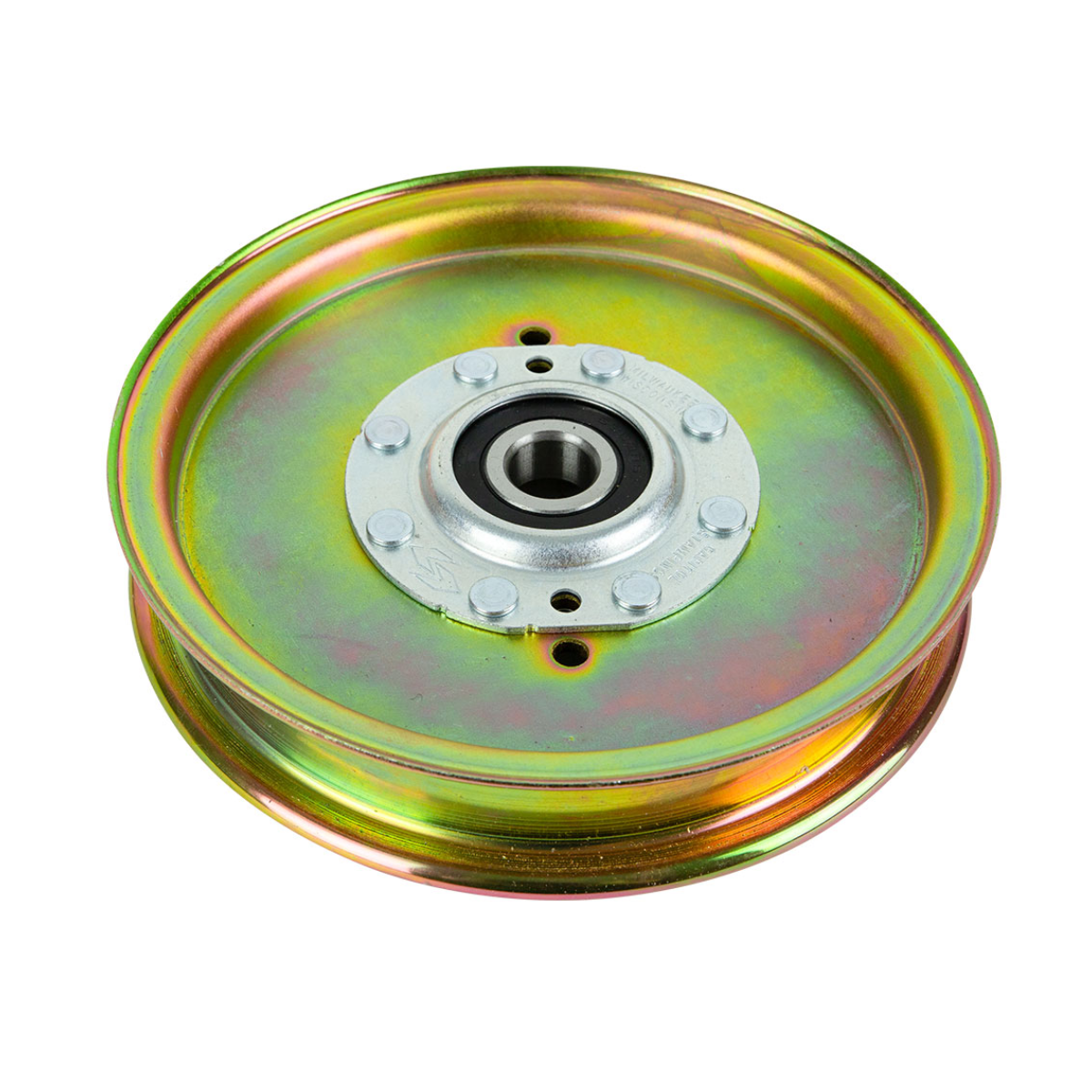

Toro Deck Flat Idler Pulley (PUL8306)

Description: Toro Deck Flat Idler Pulley - Steel

Replaces OEM: Toro 114-5895, 116-4670 and 126-9189

Deck (cm) 122 cm, 132 cm, 152 cm & 182 cm
Deck (inches) 48", 52", 60" & 72"
Deck (mm) 1220 mm, 1320 mm, 1524 mm, & 1828 mm
Inside Diameter: (inches) 0.669"
Inside Diameter: (mm) 17 mm
Outside Diameter: (inches) 6 3/4"
Outside Diameter: (mm) 171.45 mm
Pulley Dimension A: (inches) 6 3/4"
Pulley Dimension A: (mm) 171.45 mm
Pulley Dimension B: (inches) 6"
Pulley Dimension B: (mm) 152.4 mm
Pulley Dimension C: (inches) 0.669"
Pulley Dimension C: (mm) 17 mm
Pulley Dimension D: (inches) 1"
Pulley Dimension D: (mm) 25.4 mm
Pulley Dimension E: (inches) N/A
Pulley Dimension E: (mm) N/A
Pulley Dimension F: (inches) 0.275"
Pulley Dimension F: (mm) 7 mm
Pulley Dimension H: (inches) N/A
Pulley Dimension H: (mm) N/A
Pulley Dimension T: (inches) 0.118"
Pulley Dimension T: (mm) 3 mm
Pulley Height : (inches) 1 1/2" Overall Height, 1.338" between the flanges
Pulley Height : (mm) 38.1 mm Overall Height, 34 mm between the flanges

Fits: 48" (1220 mm) cut TORO Turbo Force side discharge steel deck models including but not limited to Z Master Commercial 2000 Series (model 74141 years 2015 to 2016), Z Master Commercial 3000 Series (model 74952 years 2011, 2013 to 2015), Z Master G3
(models 74901 year 2010, 74901CP year 2011, 74941CP years 2009 to 2011 and 74952
year 2011), Z Master Professional 5000 Series (models 74901 year 2012, 74904 years
2015 to 2016), Z Master Professional 6000 Series (models 74922 year 2013 and 74941CP year 2012) zero turn radius (ZTR) ride-on models. Note 1 required per unit.

Fits: 52" (1320 mm) cut TORO Turbo Force side discharge steel deck models including but not limited to Z Master Commercial 2000 Series (model 74143 years 2014 to 2016), Z Master Commercial 3000 Series (models 74953 year 2013 and 74955 year 2015), Z
Master G3 (models 74903 year 2010, 74903CP year 2011, 74923 year 2010 and 74943CP
years 2009 to 2011), Z Master Professional 5000 Series (models 74903 year 2012 and
74906 years 2014 to 2016), Z Master Professional 6000 Series (models 74923 years 2012 to 2016 and 74943CP year 2012) zero turn radius (ZTR) ride-on models. Note 2
required per unit.

Fits: 60" (1524 mm) cut TORO Turbo Force side discharge steel deck models including but not limited to Z Master Commercial 3000 Series (models 74950 year 2015, 74954 year 2013, 74958 years 2014 to 2016, 74990 year 2015 and 74996 year 2016), Z Master G3 (models 74915 year 2010 and 2012, 74915CP year 2011, 74945CP years 2009 to 2011, 74955CP years 2009 to 2010 and 74965CP years 2009 to 2010), Z Master Professional 5000 Series (model 74930 years 2015 to 2016 and 74991 year 2016), Z Master Professional 6000 Series (models 74925 year 2013, 74926 year 2013, 74939 year 2013, 74945CP year 2012, 74960 year 2015 and 74946 years 2014 to 2016) zero turn radius (ZTR) ride-on models. Note 1 required per unit.

Fits: 60" (1524 mm) cut TORO Turbo Force rear discharge steel deck models including but not limited to Z Master Professional 5000 Series (model 74942 years 2014 to 2016)
zero turn radius (ZTR) ride-on models. Note 1 required per unit.

Fits: 72" (1828 mm) cut TORO Turbo Force side discharge steel deck models including but not limited to Z Master G3 (model 74957CP years 2009 to 2010 and 74967CP years 2009 to 2010), Z Master Professional 6000 Series (models 74928 year 2013, 74940 year
2013 and 74947 years 2014 and 2016) zero turn radius (ZTR) ride-on models. Note 1
required per unit.

Fits: 72" (1828 mm) cut TORO Turbo Force rear discharge steel deck models including but not limited to Z Master Professional 5000 Series (model 74944 years 2014 to 2016)
zero turn radius (ZTR) ride-on models. Note 1 required per unit.

Features: Steel flat idler pulley

Standard Pack Quantity: 1

Brand: Toro Non-Genuine

Product Line: Flat Idler Pulley, Idler Pulley and Pulley - Idler
